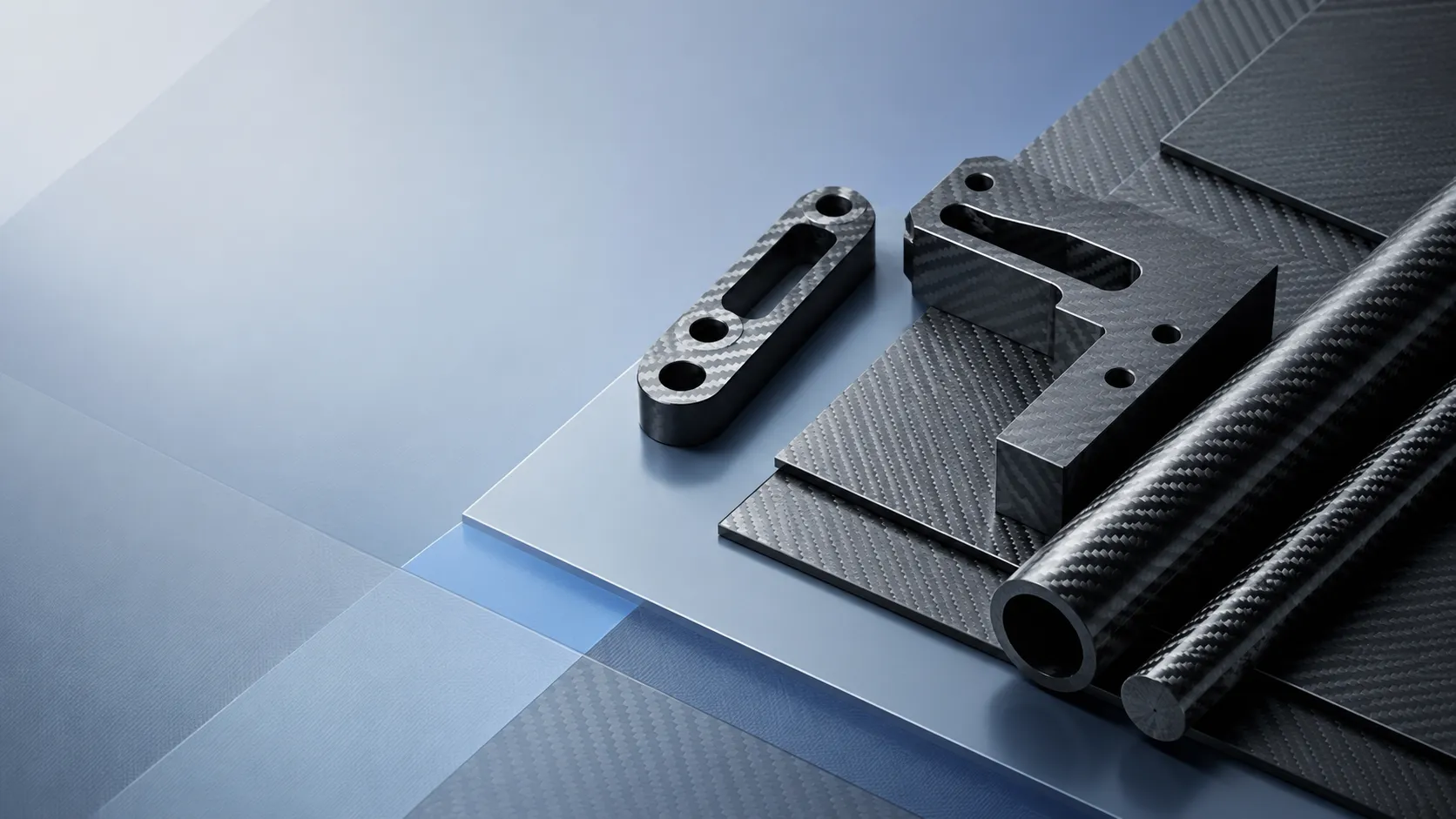

Carbon fiber composite stock material texture
COMPOSITE MATERIALS

Carbon Fiber Composite Machining

Lightweight, high-strength parts for aerospace, automotive, and robotics applications. Precision machining of carbon fiber reinforced polymer (CFRP) composites.

±0.05mm
Precision
1.5 g/cm³
Density
1500 MPa
Strength

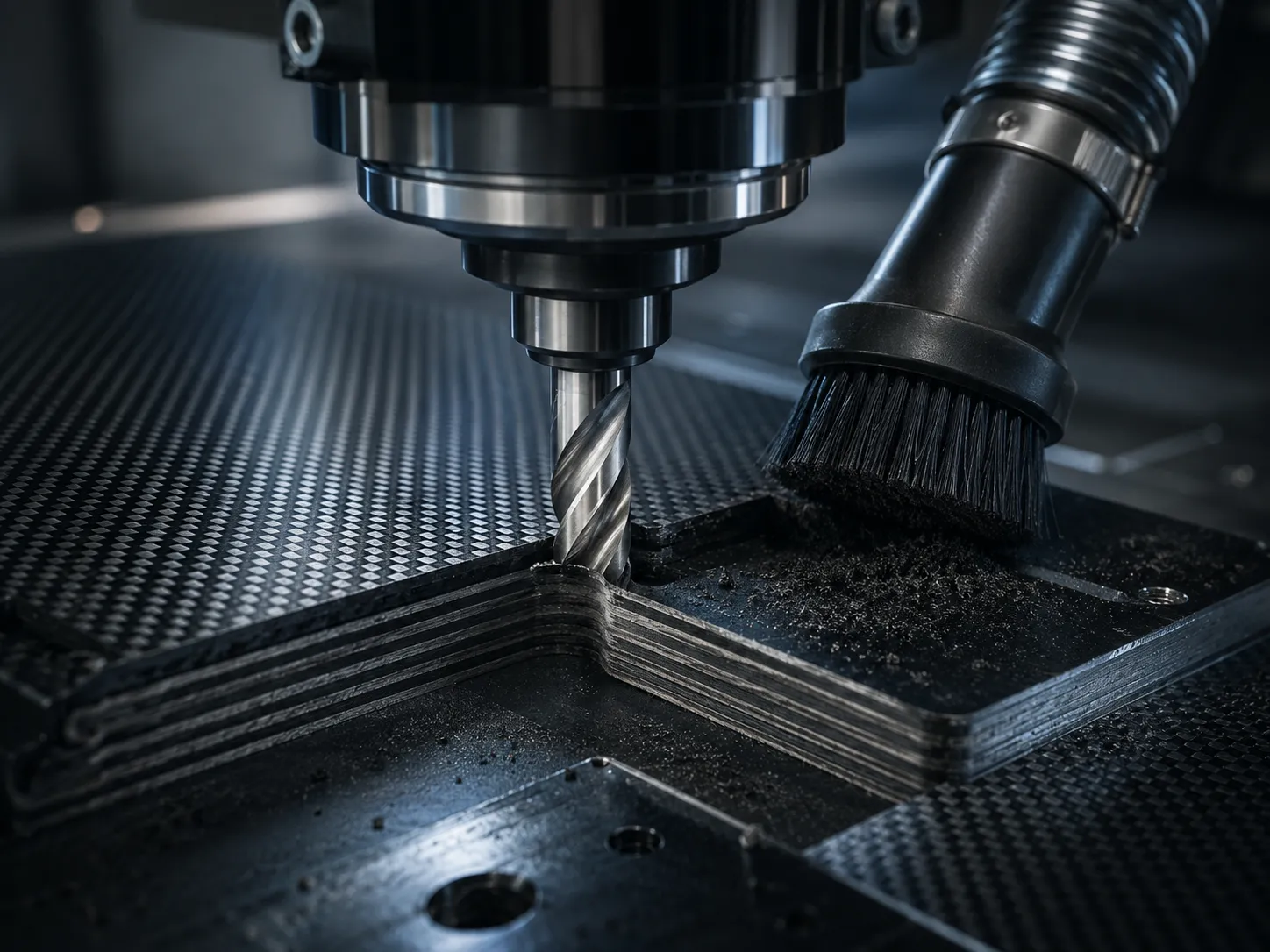

Carbon fiber sheet computer-controlled machining process
CFRP MACHINING
Specialized Diamond Tooling Required

Why Carbon Fiber Machining is Different

Carbon fiber reinforced polymer (CFRP) composites present unique machining challenges unlike metals or plastics. The combination of carbon fibers embedded in a polymer matrix creates anisotropic stock material properties — strength varies by fiber orientation. Conventional machining techniques cause delamination, fiber pull-out, and rapid tool wear.

Nelotiv facility uses diamond-coated and carbide tooling specifically designed for composite materials. Controlled feed rates and spindle speeds prevent heat buildup that damages the resin matrix. Advanced dust collection systems capture hazardous carbon fiber particles, ensuring safe working conditions and clean finished parts.

1
Delamination Risk
Improper cutting forces separate fiber layers, weakening structural integrity.
2
Tool Wear Acceleration
Carbon fibers are abrasive, requiring diamond or specialized carbide tools.
3
Heat Sensitivity
Coolant and controlled speeds essential. Polymer matrix degrades above 180°C.
§ 02 / Material Library

Carbon Fiber Material Types

Four stock forms we routinely machine. Selection governs fiber orientation, achievable tolerance, and edge behavior during routing and drilling.

4
Stock Forms
3
Fiber Classes
±0.05
mm Tolerance
Fiber Architecture
Plain Weave 0°/90°
Lay-up [(0/90)]n
Symmetric Yes
Isotropy Biaxial

Pre-Cured Sheets

FORM-A

Factory-cured flat panels with balanced 0°/90° weave. Uniform thickness, predictable chip load, and the most stable substrate for contour routing. Our default stock for 2D parts and drilled plates.

Stock Range
Thickness
0.5 – 10 mm
Panel size
500×500 mm +
Tolerance
±0.05 mm
Surface
Gloss / Matte / Twill
Machining Notes
  • ›Diamond-coated upcut for clean top edge
  • ›Backup board prevents bottom delamination
  • ›Tab fixation for thin-gauge parts <1.5 mm
Panels Brackets Covers Plates High-tolerance 2D
Fiber Architecture
Hoop / Helical Wound
Wind angle ±45° / 0°
Section Round / Rect
Stiffness axis Longitudinal

CFRP Tubes

FORM-B

Pultruded and roll-wound tubes with directional stiffness. The highest stiffness-to-weight form factor in our library; ideal for slender structural members where bending and torsional rigidity dominate the design.

Stock Range
OD
10 – 100 mm
Wall
1 – 5 mm
Length
Up to 2000 mm
Profile
Round / Square / Custom
Machining Notes
  • ›Mandrel support prevents ovality on thin walls
  • ›Through-coolant drills for hole depth >2×D
  • ›End-machining with live center to suppress chatter
Drone frames Robot links Rollers Trusses Axially loaded
Fiber Architecture
Tailored Ply Sequence
Ply count 3 – 40
Sequence Engineered
Load path Matched

Custom Layups

FORM-C

Ply-by-ply engineered layups with fiber orientation matched to the load path. Used when off-the-shelf stock cannot deliver the required directional stiffness or weight budget. We partner with certified layup facilities; post-cure machining is performed in-house.

Engineer Inputs
Fiber class
Std / IM / HM
Resin
Epoxy / Polyester
Orientation
Per load case
Cure
Autoclave / Oven
When To Specify
  • ›Directional stiffness ratio > 4:1 required
  • ›Multi-axial load envelope on a single part
  • ›Weight budget locked below generic stock
Aerospace brackets Race car tubs Drone spars Load-path optimized
Fiber Architecture
Interleaved Plies
Reinforcement CF + GF / Aramid
Cost Moderate
Failure mode Graceful

Hybrid Composites

FORM-D

Carbon fiber interleaved with glass or aramid plies. The CF plies carry stiffness; the secondary fiber controls cost, impact tolerance, and fail-safe behavior. Useful where carbon's brittle fracture mode is a design concern.

Combinations
CF / GF
Stiff + impact
CF / Aramid
Stiff + ductile
Cost band
30–50% below pure CF
Density
1.6 – 1.8 g/cm³
Best Suited For
  • ›Marine structures with impact exposure
  • ›Sporting goods subject to off-axis loads
  • ›Cost-sensitive enclosures with stiffness demand
Marine panels Hockey sticks Industrial guards Impact-tolerant
↳

All forms machineable in-house. Fiber orientation diagrams are CSS-rendered schematics, not photographs. Tolerance bands assume parameters within our standard process window; contact engineering for tight-tolerance review.

CFRP Machining Capabilities

Select a capability to see details. Specialized processes for composite materials.

Precision Profiling

CNC routing and profiling of carbon fiber sheets into complex 2D shapes. Diamond-coated router bits prevent fiber pull-out and help maintain clean edges. We machine parts up to 1000×500mm from sheet thicknesses 0.5mm to 10mm.

±0.05mm contour tolerance
No delamination with proper feed rates
Clean edges suitable for bonding
MAX SIZE
1000×500mm
THICKNESS
0.5-10mm

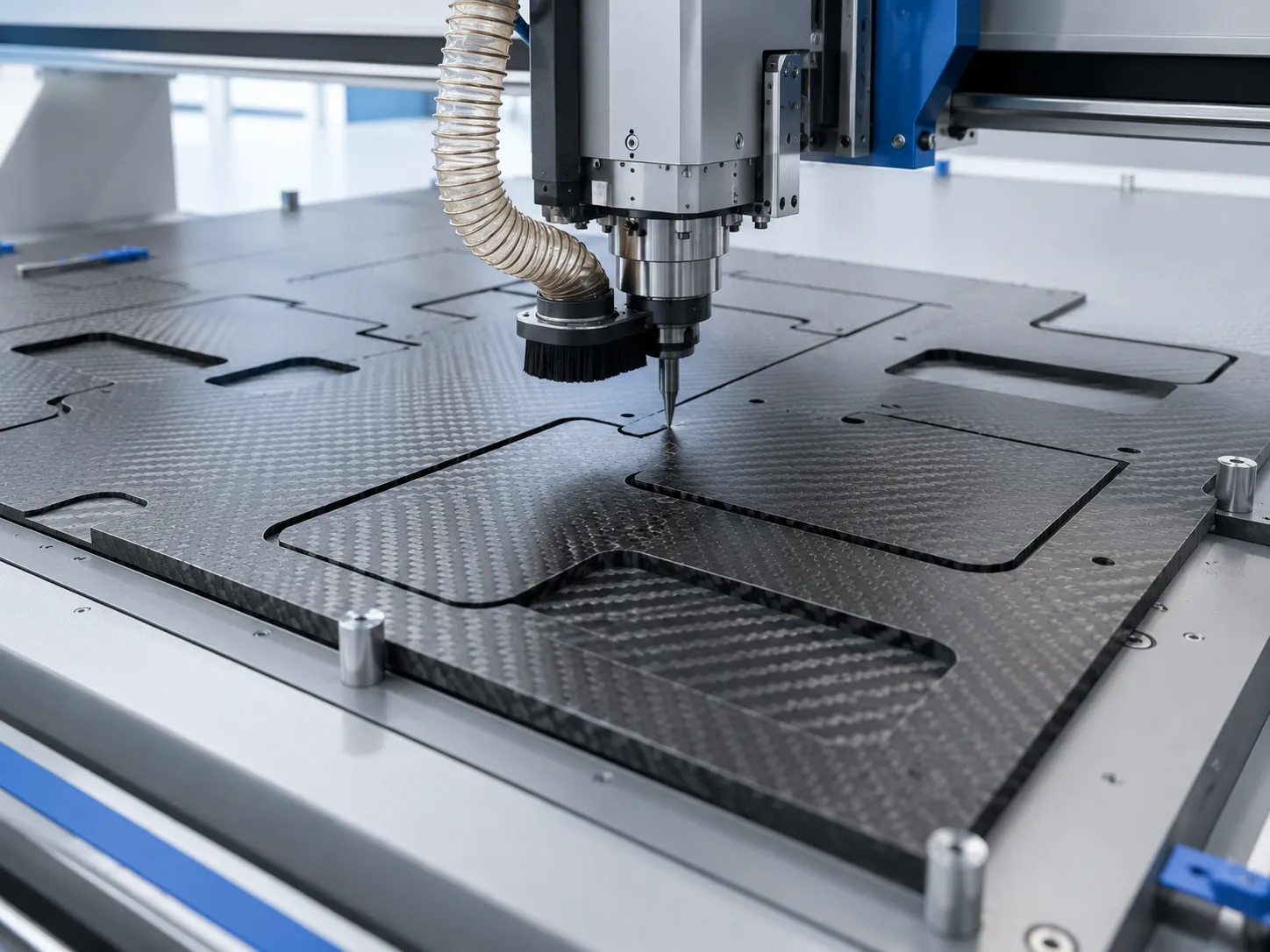

Carbon fiber profiling process

Drilling & Milling

Specialized brad point drills and diamond-coated end mills prevent fiber damage. Peck drilling cycles reduce heat buildup. Hole sizes from 2mm diameter. Precision hole drilling and pocket milling in CFRP without delamination.

Holes from 2mm diameter
Peck drilling prevents heat damage
Position tolerance ±0.1mm
MIN HOLE
2mm
POSITION
±0.1mm

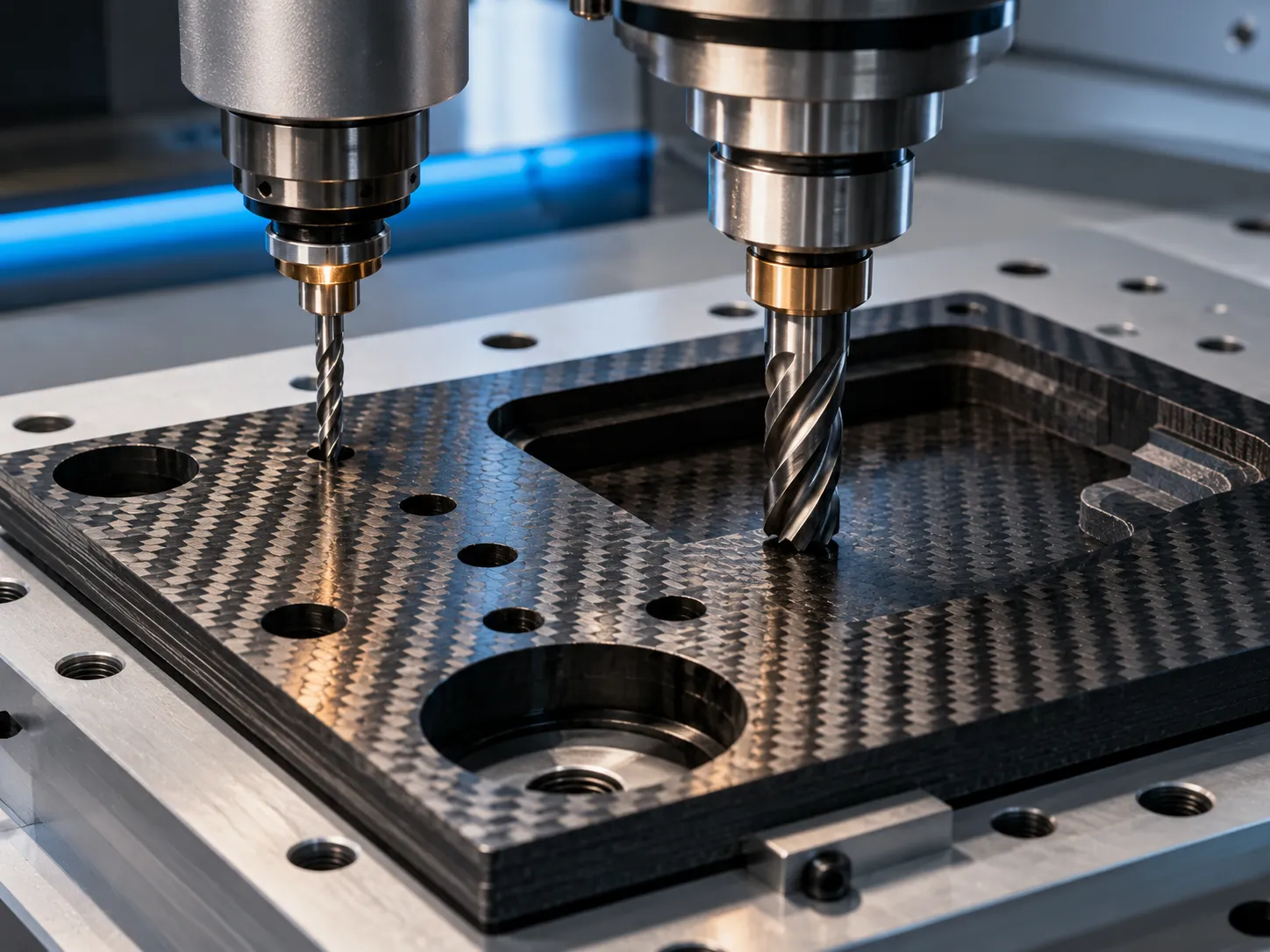

Carbon fiber drilling operation

Surface Finishing

Edge sealing prevents moisture ingress and fiber fraying. Surface sanding creates optimal bonding surfaces. Primer application available for paint systems. Post-machining surface preparation for bonding and coating.

Edge sealing for moisture protection
Surface preparation for bonding
Clear coat and paint options
FINISH OPTIONS
Sealed, Sanded, Coated
ROUGHNESS
Ra 3.2μm

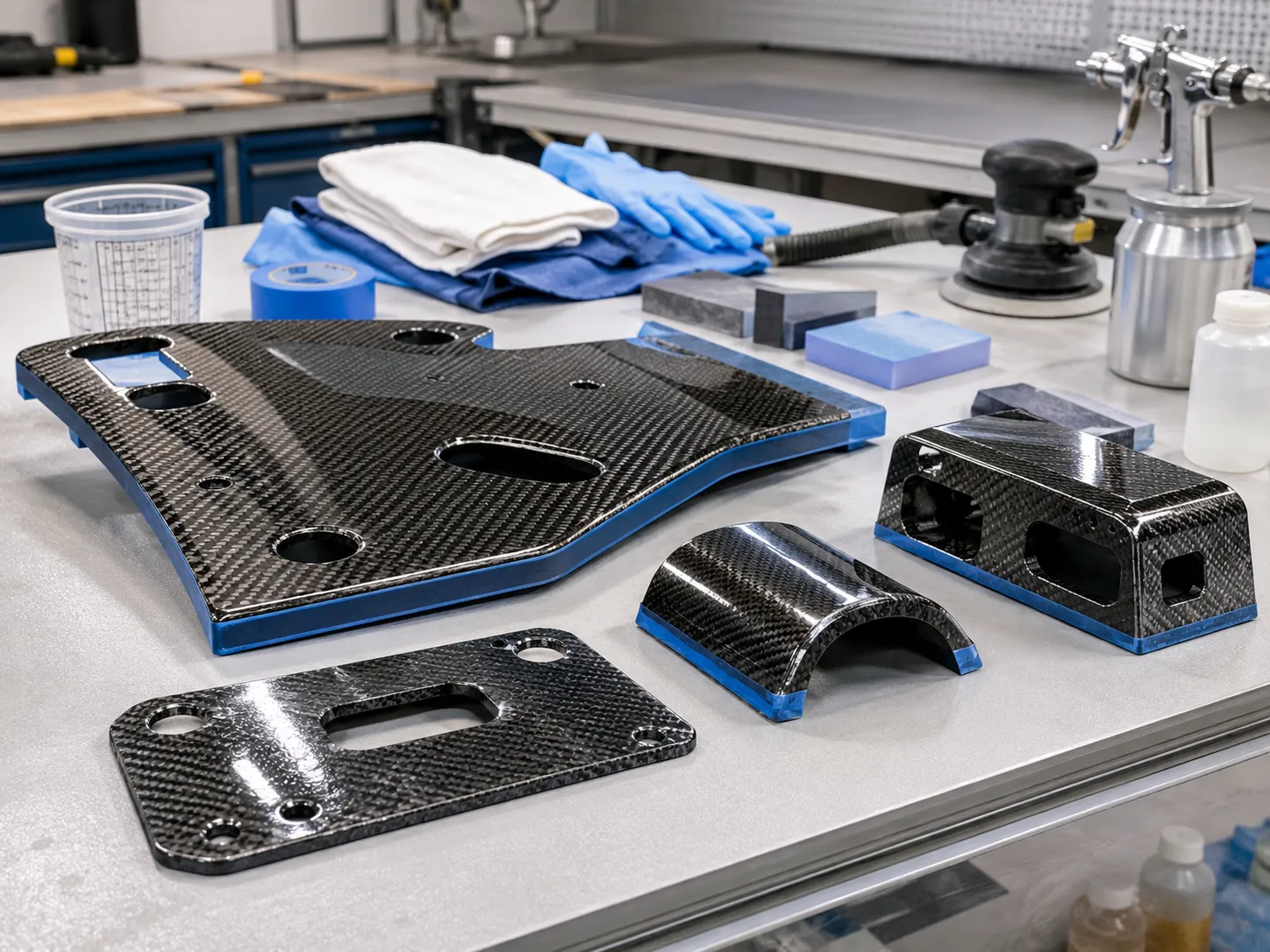

Carbon fiber surface treatment

Carbon Fiber Material Properties

Property Standard CFRP Intermediate Modulus High Modulus
Tensile Strength 500-700 MPa 700-1000 MPa 1000-1500 MPa
Modulus of Elasticity 70-80 GPa 150-200 GPa 200-250 GPa
Density 1.5-1.6 g/cm³ 1.5-1.6 g/cm³ 1.6-1.7 g/cm³
Max Service Temperature 120°C 150°C 180°C
Machining Tolerance ±0.08mm ±0.05mm ±0.05mm
§ 06 / Application Engineering

Industries & Applications

Where carbon fiber earns its place. Each row pairs the engineering driver with the CFRP property that delivers it, so design intent maps to material choice.

Selection Principle

Carbon fiber is specified when specific stiffness (E/ρ) or specific strength (σ/ρ) must exceed what metals offer. Below: the property each industry exploits, and the part class we machine to deliver it.

01
Aerospace
Structural panels & fairings
Interior skins, access doors, antenna mounts, fairing brackets
Fuel burn
Payload
E/ρ > 5× Al
Pre-Cured Sheet
02
Automotive
Body panels & interior
Performance panels, trim, structural reinforcement, battery enclosures
0–100 time
CG height
σ/ρ > 4× steel
Sheet / Custom Layup
03
Drones & UAV
Frame structures
Multi-rotor arms, wing spars, propeller hubs, gimbal mounts
Flight time
Payload
Bending stiffness
CFRP Tube
04
Robotics
Arm links & components
Robot arm segments, gripper fingers, end-effector plates, motion links
Cycle time
Settling
Damping + E/ρ
Tube / Sheet
05
Medical
Imaging equipment
X-ray & MRI table parts, CT couch tops, surgical instrument shafts
Image clarity
Patient load
Radiolucency
Custom Layup
06
Sporting Goods
Performance components
Bicycle frames, racket shafts, golf club shafts, ski pole tubes
Swing weight
Impact life
Ductility (hybrid)
Tube / Hybrid
Legend
Engineering driver importance (relative within each industry)
E/ρ = specific stiffness (modulus ÷ density)
σ/ρ = specific strength (tensile ÷ density)

CFRP Machining Process

1

Material Selection

Verify fiber orientation and resin system match application requirements. Choose appropriate CFRP type — sheet, tube, or custom layup.

2

Tooling Setup

Select diamond-coated or carbide tools based on stock material thickness and fiber type. Configure spindle speeds and feed rates to prevent delamination.

3

CNC Machining

Dust collection systems capture hazardous particles. Monitor for fiber damage or delamination. Execute profiling, drilling, and milling operations.

4

Finishing & QC

Surface preparation for bonding or coating. CMM inspection verifies dimensions. Visual inspection for fiber damage. Edge sealing prevents moisture ingress.

Why Choose Nelotiv for Carbon Fiber

Composite Material Expertise

We understand fiber orientation effects, delamination prevention, and proper tool selection for different composite types. Specialized experience in CFRP machining.

No MOQ — Prototype to Production

Whether you need one prototype part or production volumes, we deliver consistent quality and precision. Single-piece orders welcome.

Verified Quality Control

ISO 9001:2015 certified quality system. Full stock material traceability available. CMM inspection verifies dimensions. Visual inspection for fiber damage and delamination.

0
Years Composite Experience
±0.05mm
Precision Tolerance
0
CFRP Parts Delivered
0
Hour Quote Response
ISO 9001:2015
24h Response

Carbon Fiber Machining FAQ

Ready to Launch

Start Your Carbon Fiber CNC Project

Upload STEP files for composite-specific DFM review. Nelotiv engineers assess fiber orientation requirements and recommend optimal CFRP selection.
