CNC Micromachining
for Miniature components
Where standard CNC stops, micro CNC begins — producing tiny components for medical, fiber optics and satellite applications.
Understanding Micromachining
Where standard CNC
runs out of digits.
Micro CNC processing is a CNC processing process that creates tiny components using advanced cutting tools. It manufactures miniature components ranging from 1 micrometer (1 µm) to 1 millimeter (1 mm), supporting miniature component manufacturing. in size.
Standard CNC machining cannot create micron-level controlled dimensional specifications. For such miniature components, special material-removal techniques take over — micro EDM (electrical discharge machining), micro milling, and micro CNC machining — each tuned to a scale where a human hair is a bulky reference object.
A component is classified as micromachined when it requires specialized micro-CNC processing tools to create features like slots, holes, cavities and channels in the 1 µm to 1 mm range, with dimensional stability held at sub-millimeter to a few centimeters overall.
ISO 9001
2015 Certified
CMM
Quality Inspection
Industry 4.0
Compliant
Robotic
Assemblies
True Micromachining Tolerances
Zoom starting using millimeter to micron.
Click each scale to see what lives there. Every step is a 10× jump — the same component that fits on your fingertip at 1 mm becomes invisible to the naked eye by 1 µm.
1mm
At the upper bound of micro CNC processing, components measure from sub-millimeter up to a few centimeters. Standard CNC can no longer hold the required tolerance here.
100µm
One hundred micrometers — about the width of a human hair. Micro milling cutters as small as 10 µm carve complex geometries under CNC control.
10µm
The diameter of the smallest end mills and drilling tools. Spindles reach 100,000 RPM to keep chip load sane at this diameter.
5µm
Feature size achievable with micro EDM wire. Electrical sparks erode material without physical contact — no mechanical stress.
1µm
Our tolerance floor. Both micro milling and micro EDM can be held to ±1 µm through specialized tooling and CMM inspection.
Micro Integrated A Controlled manufacturing workflow Capabilities
Five techniques, all across one coordinated supplier.
Each capability solves a different micro-scale problem — from chip-cutting geometry to spark erosion and ablation. Together they cover the full range of miniature component specifications.

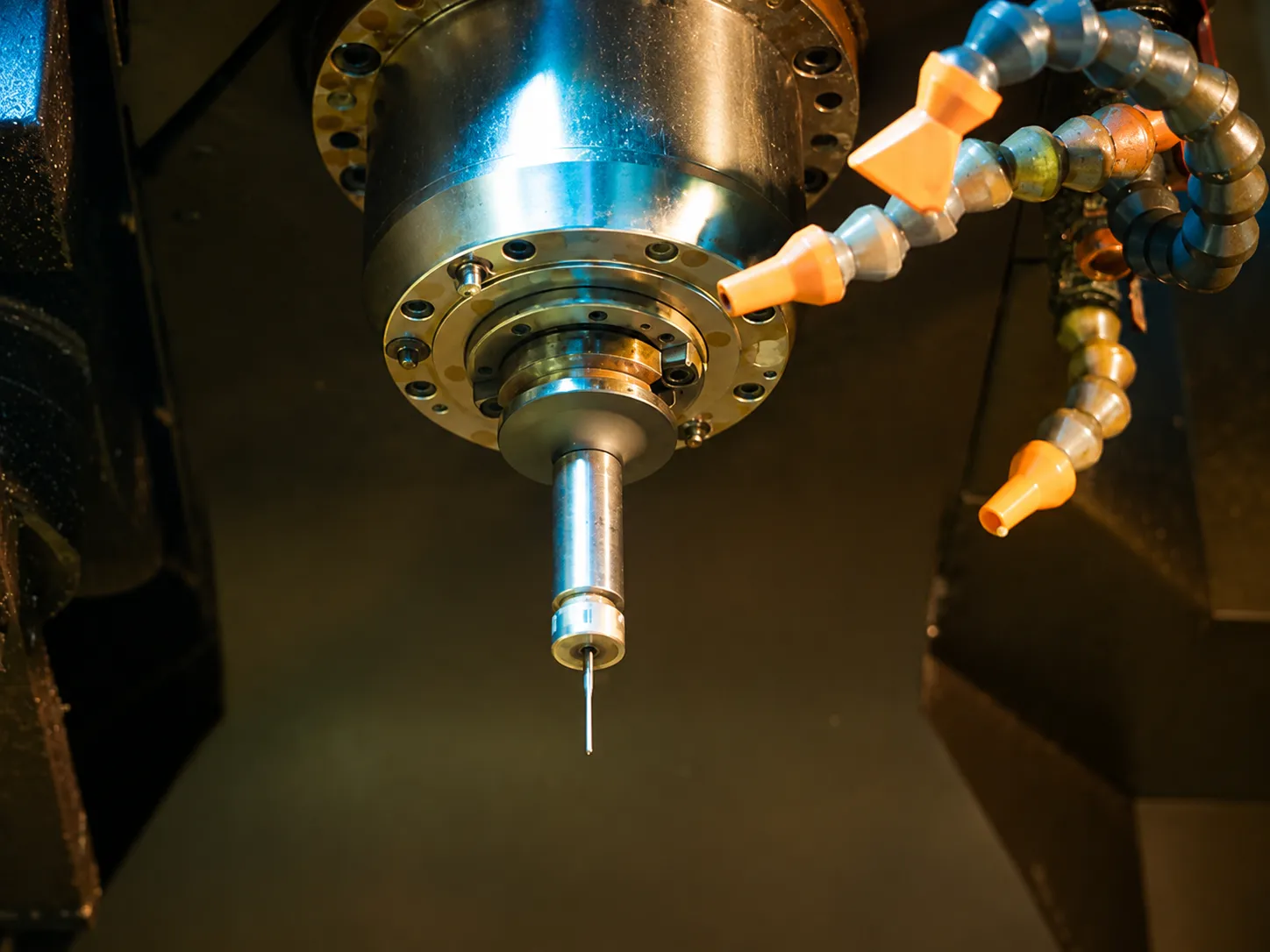

Micro Milling
CNC-controlled cutting with miniature tools as small as 10 µm. creates feature-rich geometries and tolerances up to 1 µm, with elevated dimensional dimensional control, thermal stability and vibration absorption for hard materials.
- · Speeds up to 100,000 RPM, supporting miniature component manufacturing.
- · End mills, ball mills, drilling tools, supporting miniature component manufacturing.
- · Guideways & responsive servo-motors

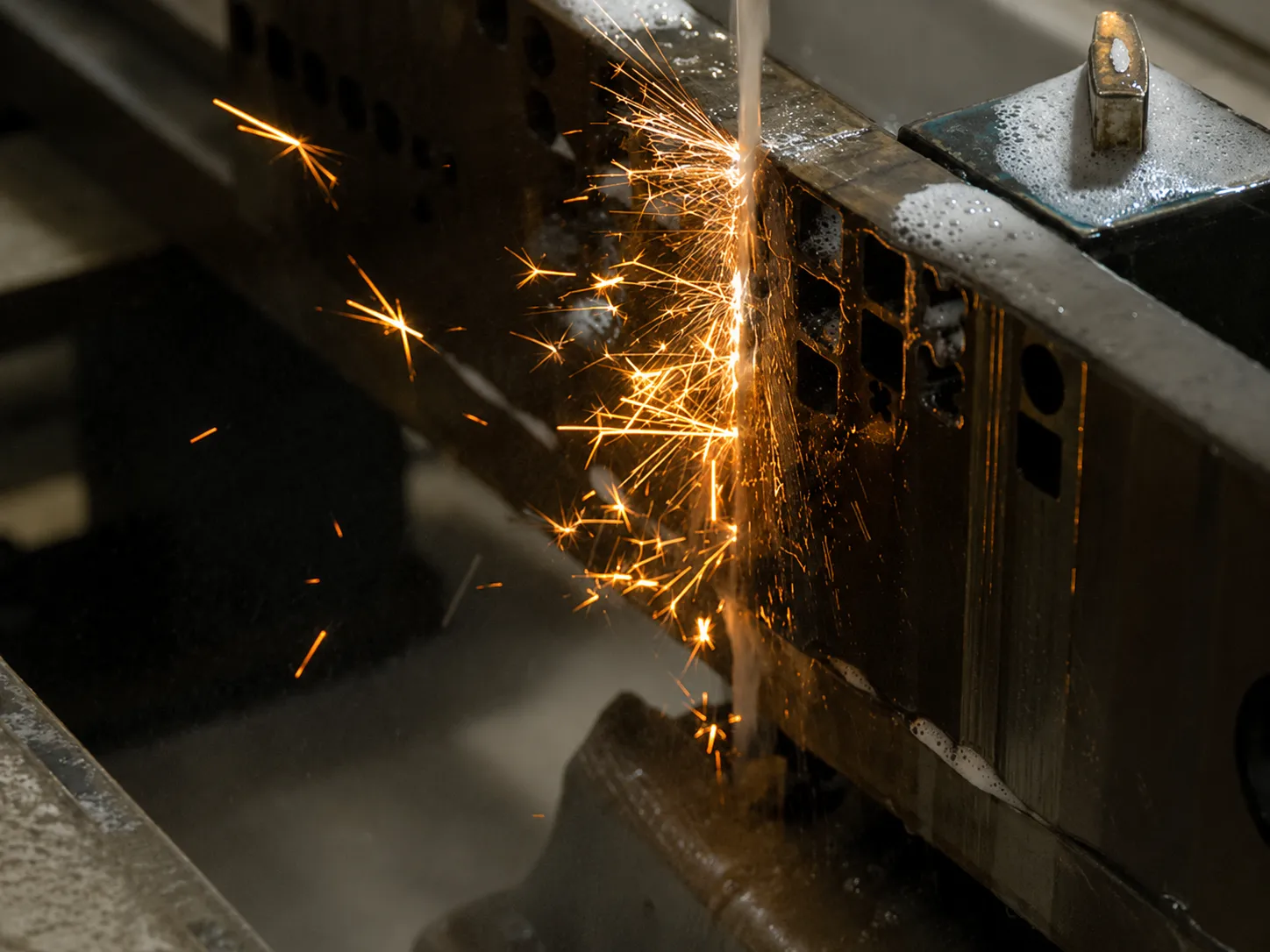

Micro EDM
Electrical sparks erode material without physical speak with. applies wire EDM to achieve sizes as small as 5 µm and tolerances of 1 µm — no mechanical stress, machines hard materials, crafts internal features.
- · Zero-tolerance machining
- · Minimal thermal damage
- · high precision for intricate shapes
Laser Machining
Ablation and drilling using focused laser energy. appropriate for chips, printed circuit boards and MEMS — producing intricate components using fine features that no cutting tool can reach.
- · Surface micromachining
- · MEMS fabrication
- · Non-speak using, no tool wear
Micro CNC Machining
Full 3- to 5-axis micro CNC for miniature components that need conventional subtractive logic at micron scale. Combines the geometry freedom of CNC with the precision of micro tooling.
- · Multi-axis micro positioning
- · Sub-millimeter part envelope
- · Prototype to production
Precision Surface Finishes
Mirror and micro-polished finishes essential for medical, optical and fluidic applications. Surface roughness tested and documented to verify every micro component meets its specification.
- · Surface roughness testing
- · Optical-grade polish
- · Biocompatible finishes
Try micro machining now.
submit your micro component design. Our engineering team will assess feasibility and quote within 24 hours.
Common Materials
Each material, chosen for a reason, supporting miniature component manufacturing.
Micro component performance depends as much on material as on geometry. Here is how we pair them — why each is used, and where it shows up in the real world.
Silicon / Silicon Carbide
Semiconductor
Microchips
→Stainless Steel
Highly durable and diverse
Micro-gears, micro shafts, micro fittings, supporting miniature component manufacturing.
→Titanium
High strength, biocompatible
Medical implants
→Aluminum
Lightweight, electrically conductive
Drones
→PMMA (Acrylic)
Biocompatible
Optical lenses
→Ceramic
Heat and corrosion resistant
Micro-nozzle
→Carbon Fiber
Custom strength, lightweight
Aerospace structures, prototypes
→Industries
Where micro parts live.
elevated-precision micromachining services across industries — expert in CNC micro milling, laser CNC processing and 5-axis micro solutions.
01

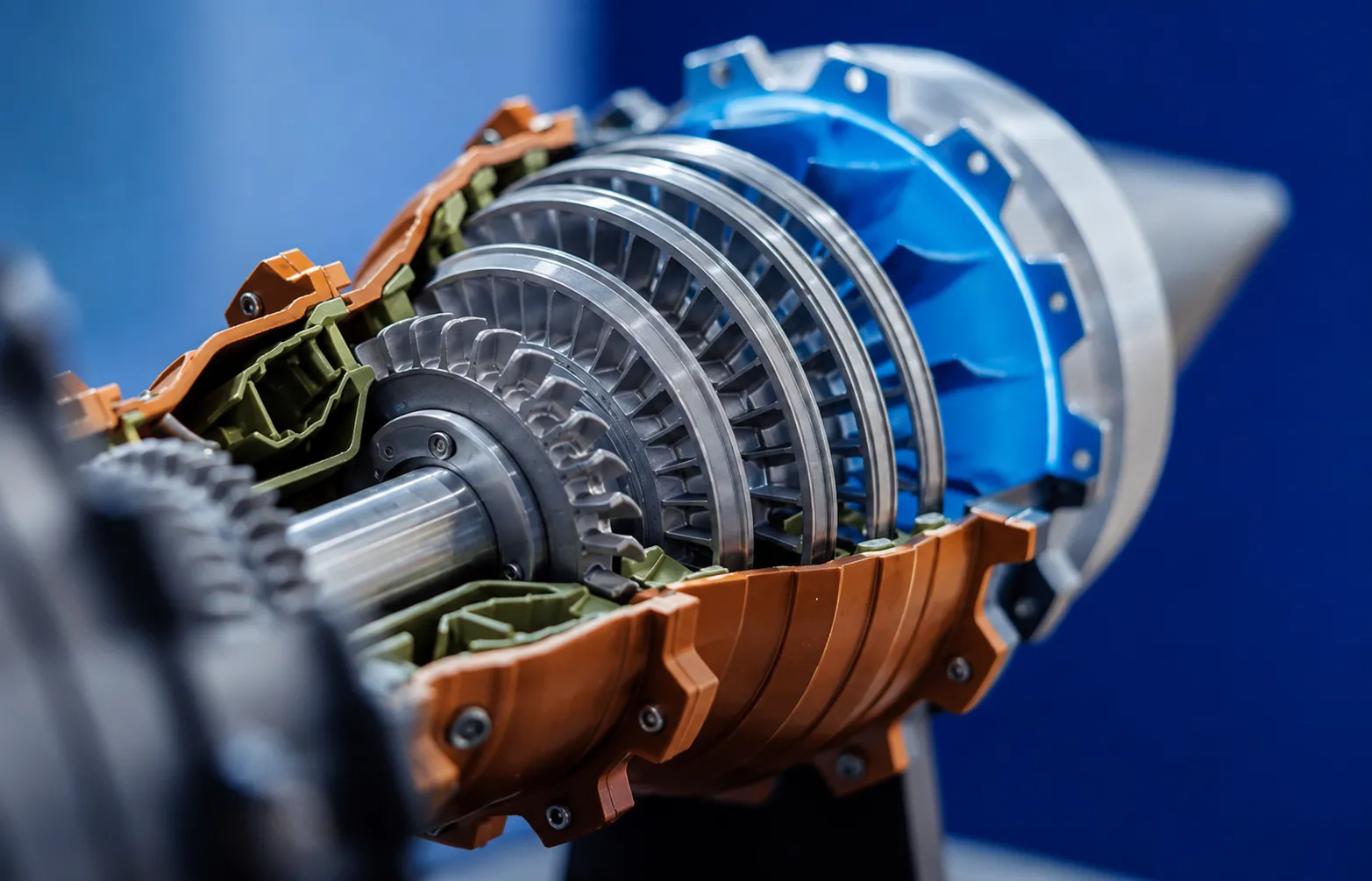

Aerospace Components
Micro milling creates channels in turbine blades, micro gears and actuators — components where every gram and every micron matters, supporting miniature component manufacturing.

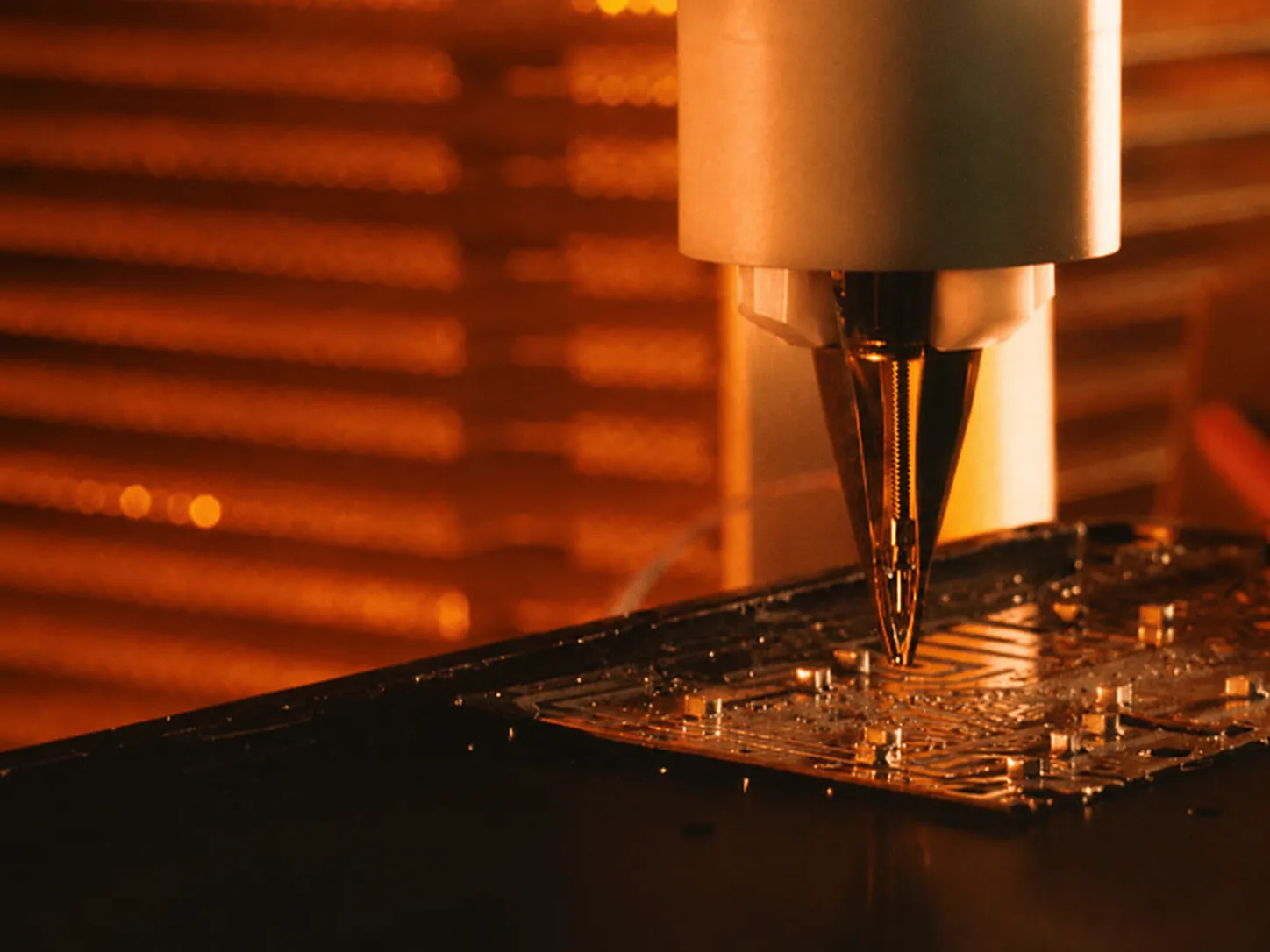

Electronics
In consumer electronics like chips and printed circuit boards, laser micromachining and surface micromachining create intricate components such as MEMS, supporting miniature component manufacturing.
02

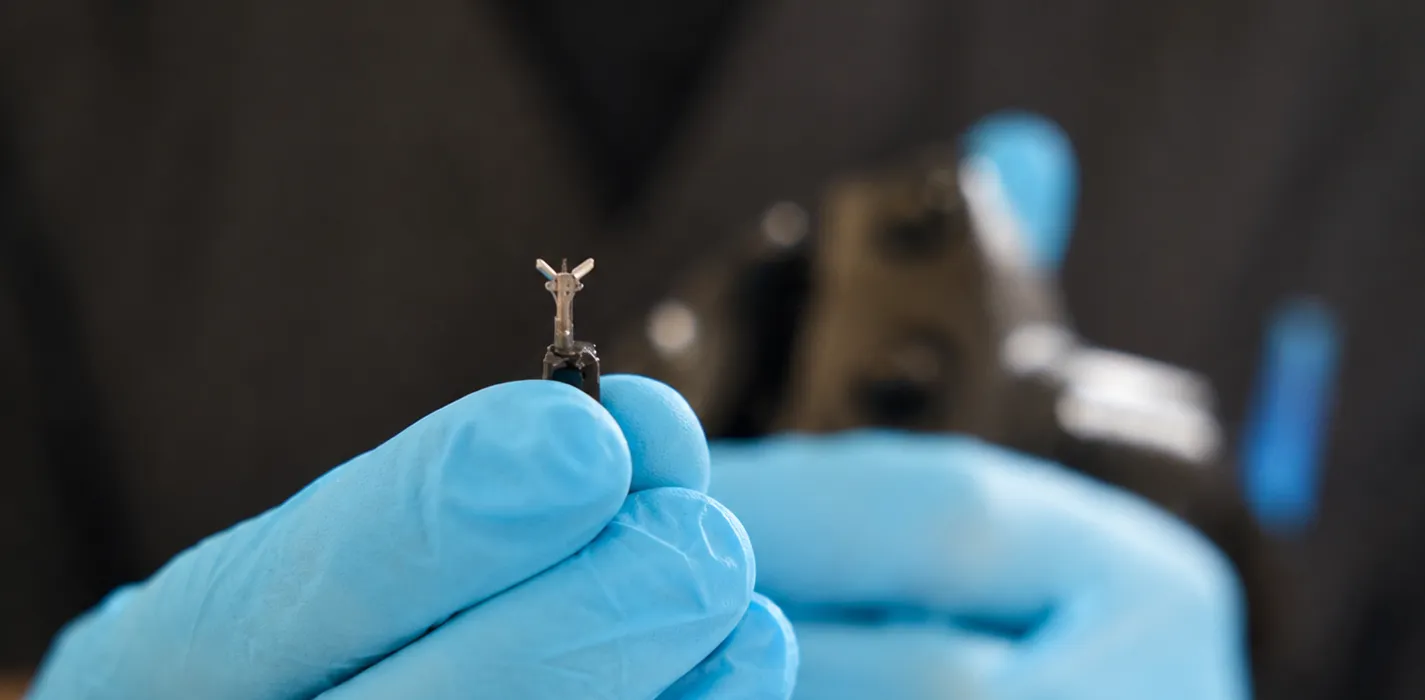

Medical
Miniature medical devices — sensors, implants, micro-needles — need CNC processing of biocompatible materials like titanium and PMMA.
04

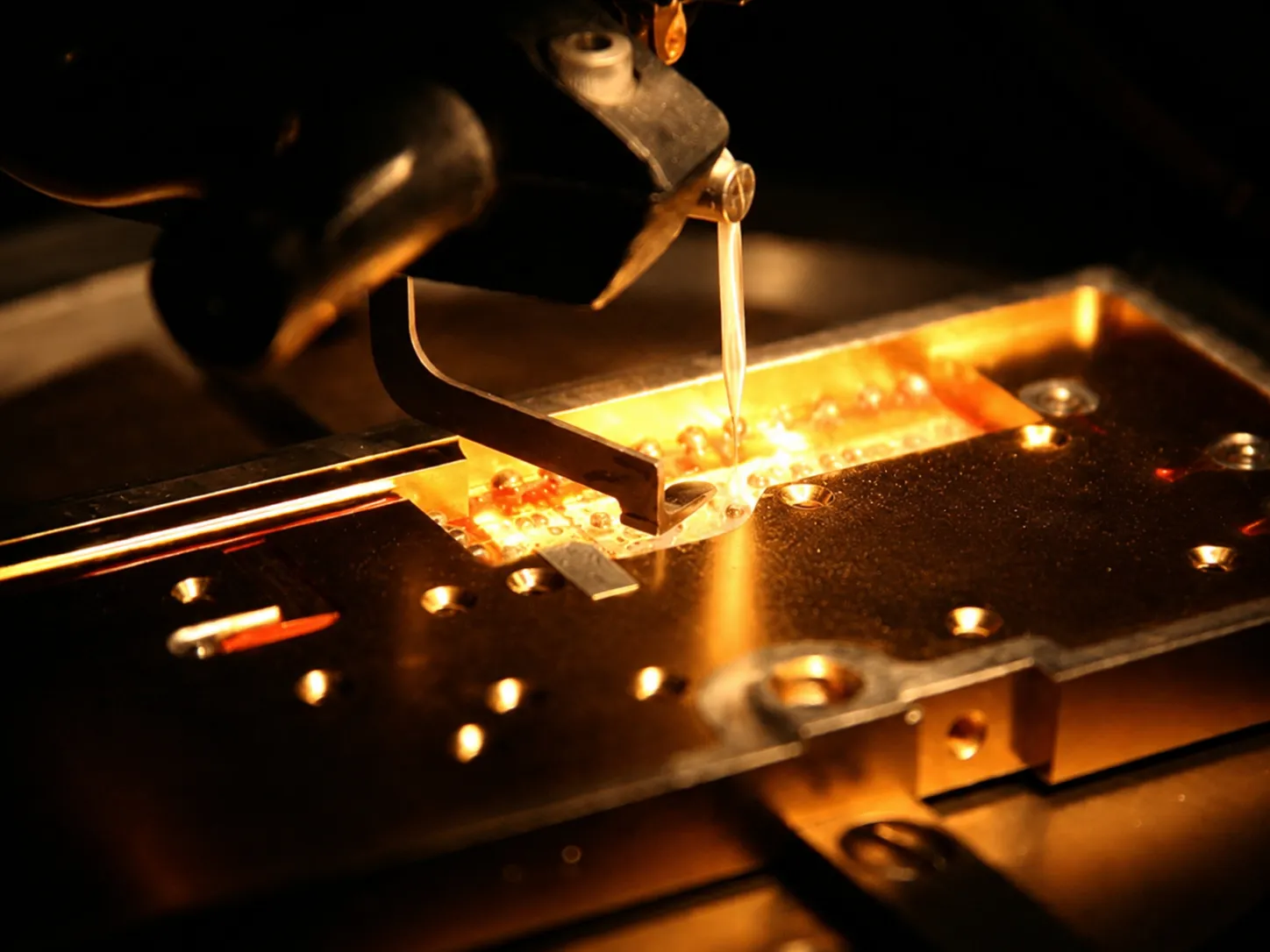

Automotive
Battery sensors, optics in cameras, and microphones all make apply of micro-CNC-produced drilling and precision features.
05

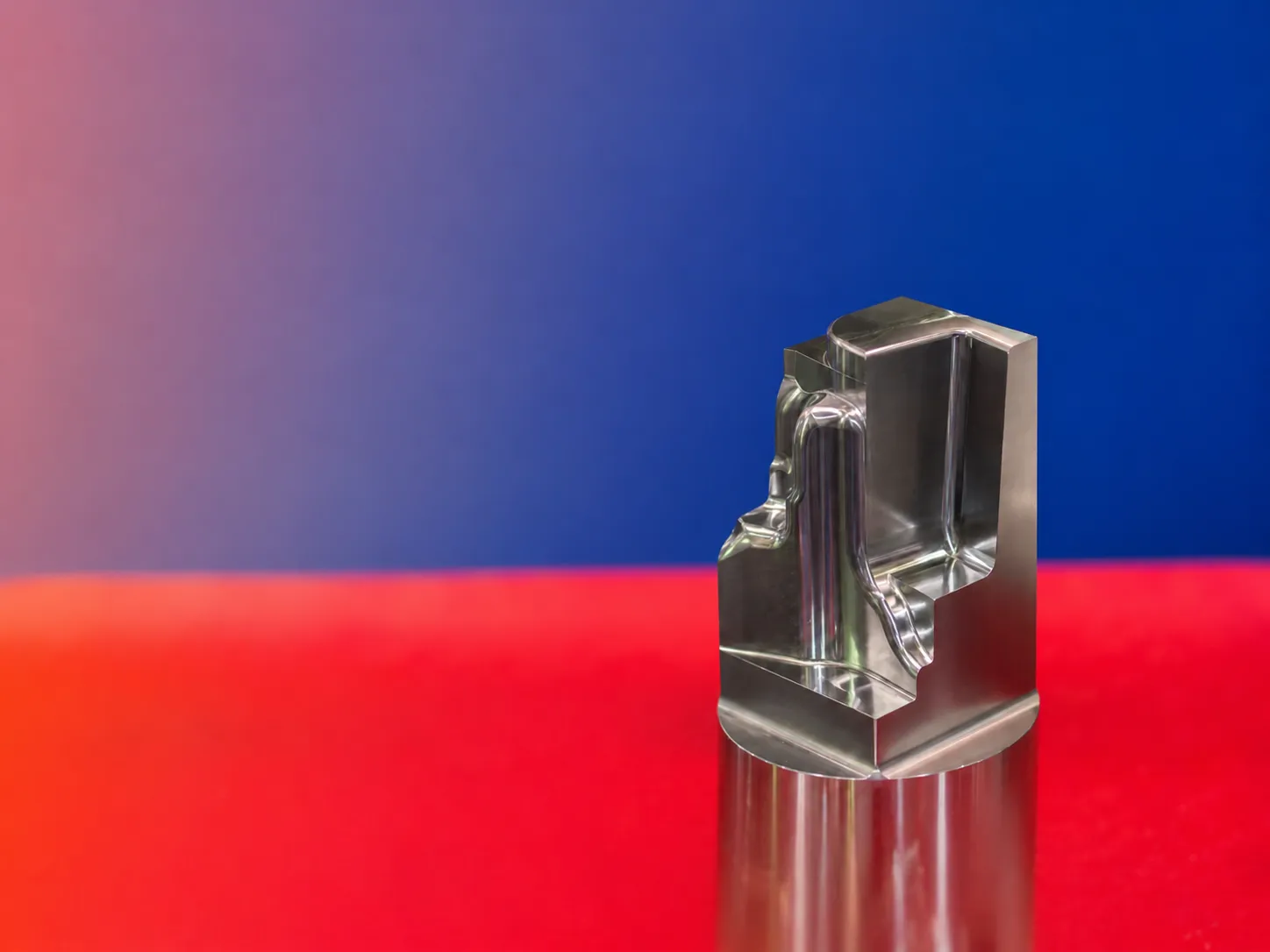

Micro Molds
Tool steel, nickel steel and other hard materials used for micro molds, requiring high-dimensional control machining to match mold tolerances and intricate assemblies.
Ready to go micro?
Get a free micro CNC processing quote. Send your design and our engineers will assess feasibility same-day.
FAQ
Practical answers for buyers.
Micro machining refers to precision manufacturing of extremely small and intricate components, typically with features in the micron range. It applies specialized tools and machines to achieve much tighter tolerances and finer details than standard CNC machining.
Nelotiv works with a broad selection of materials such as stainless steel, titanium, aluminum, brass, PEEK and other engineering plastics. Material choice depends on your application's strength, thermal and electrical specifications.
Our advanced micro CNC processing capabilities can support feature sizes as small as a few microns, with tolerances down to ±1–2 microns, determined by the material and design complexity.
We frequently create micro components for medical devices, fiber optics, aerospace, electronics and satellite technology — wherever precision and miniaturization are critical, supporting miniature component manufacturing.
Yes. Nelotiv offers both rapid prototyping and high-volume production. We scale with your order, whether you need 10 units or 10,000, while maintaining consistent quality.
To speed up the quoting workflow, please supply:
· 2D drawings or 3D CAD files (STEP, IGES, or STL), supporting miniature component manufacturing.
· Material requirements
· Estimated quantity
· Tolerance and surface finish manufacturing goals
· Any special certifications (ISO, RoHS, etc.), supporting miniature component manufacturing.
Lead time depends on component complexity, quantity and material availability. Prototyping in most cases takes 5–10 business days, and production orders range from 2–4 weeks.
We follow controlled conformance protocols such as CMM inspection, high-magnification visual checks and surface roughness testing. Full inspection reports and material certifications are offered upon request.
Try Nelotiv's free consultation.
Send us your micro component design and material specifications. A manufacturing engineer will assess manufacturability, tolerances, and production specifications and respond within 24 hours with a detailed, competitive quotation — no obligation, no MOQ.
