Aluminum 6061 vs. 7075 for
CNC Machined Parts

6061 is the general-purpose choice; 7075 is the strength choice. Aluminum 6061-T6 offers balanced strength, excellent corrosion resistance, reliable weldability, and moderate cost, which is why it anchors so many structural and enclosure designs. Aluminum 7075-T6 delivers roughly 80 percent more yield strength at a modest density penalty, which is why it dominates highly stressed aerospace and tooling components. The trade is real: 7075 is generally not welded in structural practice, resists corrosion less well, and costs more per kilogram.

For a designer or buyer specifying machined parts, the decision usually comes down to four questions. Does the part actually see stresses that 6061 cannot carry? Will it live in a corrosive environment? Does the design need welding? And does the strength gain justify the material premium at the required quantity? This guide compares the two alloys across those dimensions so the answer follows from the drawing, not from whichever alloy was used last time.

01 Alloy Families and Temper Designations

The four-digit number is a family address. 6061 belongs to the 6xxx series, alloyed primarily with magnesium and silicon. 7075 belongs to the 7xxx series, alloyed primarily with zinc, with meaningful magnesium and copper additions. Series chemistry drives the differences that matter later in this article: 6xxx alloys trade some strength for corrosion resistance and weldability, while 7xxx alloys push strength higher at the cost of both.

The suffix matters just as much as the number. The common "-T6" condition means the material was solution heat-treated and then artificially aged to peak strength. Two related tempers appear frequently on machined-part drawings: T651, in which plate is stress-relieved by stretching after quenching, and T73, an overaged 7075 temper that gives up roughly 10–15 percent of strength in exchange for substantially better resistance to stress-corrosion cracking. Specifying "7075" without a temper leaves the shop guessing, because the property difference between tempers of the same alloy can be larger than the difference between two alloys.

Quick Reference Designation systems such as EN AW-6061 / EN AW-7075 and UNS A96061 / A97075 refer to the same alloy families. What changes between systems is labeling, not metallurgy.

02 Mechanical Properties Compared

The values below are typical handbook figures for the T6 condition, useful for comparison. Certified values for a specific purchase arrive on the mill test report, and thin sections, large plate, and directional effects (longitudinal versus transverse) all shift real numbers. Treat the table as a decision aid, not a substitute for the certificate.

Reference Table Typical values compiled from standard mill datasheets and metals handbooks. Values vary with product form, thickness, and orientation; confirm against the certified mill report for load-critical parts.

Read the strength rows in context. A yield advantage of roughly 80 percent shrinks only a little after correcting for density, so 7075 retains a decisive specific-strength edge wherever mass matters — wing ribs, drive components, performance brackets. That advantage compounds in cyclic loading: the indicative fatigue values track the same gap, which is why fatigue-critical hardware rarely starts from 6061.

The same table also explains why 6061 remains the default for so many parts. Its ductility survives forming and assembly loads, tapped threads and press fits behave predictably, and for enclosures, mounts, jigs, and low-stress structural parts, "strong enough with margin" beats "strongest available" once corrosion behavior, welding, and price enter the comparison. If the drawing's critical dimensions also carry tight tolerance callouts, the material choice should be settled before quoting begins — an overview of how general tolerances interact with drawing intent is covered in the guide to DFM decisions that delay production.

03 Machining Behavior on the CNC

Both alloys machine freely compared with steels or titanium — high cutting speeds, manageable tool loads, no workhardening drama. The differences show up in cutting forces, chip behavior, and how each material forgives imperfect conditions.

6061 is the more forgiving of the two. Lower strength means lower cutting forces and lighter load on fixtures. Chips break cleanly in turning, and the material produces a bright, consistent surface finish across a wide parameter window. Its softness cuts both ways: with dull tools or marginal speeds, aluminum can smear and form built-up edge, so shops favor sharp, polished-flute carbide geometry and generous coolant or air blast for swarf control.

7075 demands more from the tool and rewards it. Higher strength raises cutting forces and spindle load, and the fine, stringy chips it produces need disciplined evacuation. Tool wear advances faster, which shows up in tooling cost per part on longer runs. In exchange, 7075's stiffness and hardness deliver an excellent as-machined surface and help thin walls and slender features hold their geometry under cutting pressure — one reason it is a favorite for monolithic parts that replace assemblies.

For tight-tolerance work in either alloy, stress-relieved T651 plate is the safer stock choice. Standard quenched plate carries residual stresses that rebalance as material is removed, which can bend an otherwise correct machining plan — a long pocket milled from one face of stressed stock is a classic distortion case. Neither alloy eliminates the effect; buying the right stock condition simply reduces it. If a part combines thin walls, tight flatness, and heavy stock removal, flag it for engineering review — aluminum machining suppliers can propose cutting strategy and stock condition together.

Small features respond to the difference as well. Tapped holes in 6061-T6 hold up well for ordinary loading, though threads in thin sections or frequent-disassembly designs are often upgraded with helical inserts, because the softer parent material can cold-flow under sustained clamp load. 7075's higher hardness gives its threads better wear resistance across repeated assembly cycles and higher clamp loads — one quiet reason it appears in linkage and fixture hardware. For either alloy, deep small-diameter holes and tight-tolerance bores belong on the drawing-review list: they drive tool selection and sometimes the decision to ream or bore a critical hole rather than drill it to size.

04 Corrosion and Surface Finishing

6061 forms a stable, protective oxide and shrugs off ordinary atmospheric exposure, including marine-adjacent service, with little assistance. 7075's copper content weakens that natural protection; uncoated 7075 pits and stains more readily, and sheet products have historically been supplied clad with pure aluminum specifically to work around this weakness. The practical translation: 6061 parts can often ship bare; 7075 parts usually deserve a specified finish.

Stress-corrosion cracking deserves its own line in the risk column. In the T6 temper, 7075 under sustained tensile stress in a corrosive environment can crack over time at loads well below yield — a failure mode with no warning sign. Where a high-strength part must also endure corrosive exposure, 7075-T73 is the standard answer, trading roughly 10–15 percent of strength for a large improvement in SCC resistance. 6061 is not immune to environment-driven degradation, but its SCC susceptibility is far lower in comparable service.

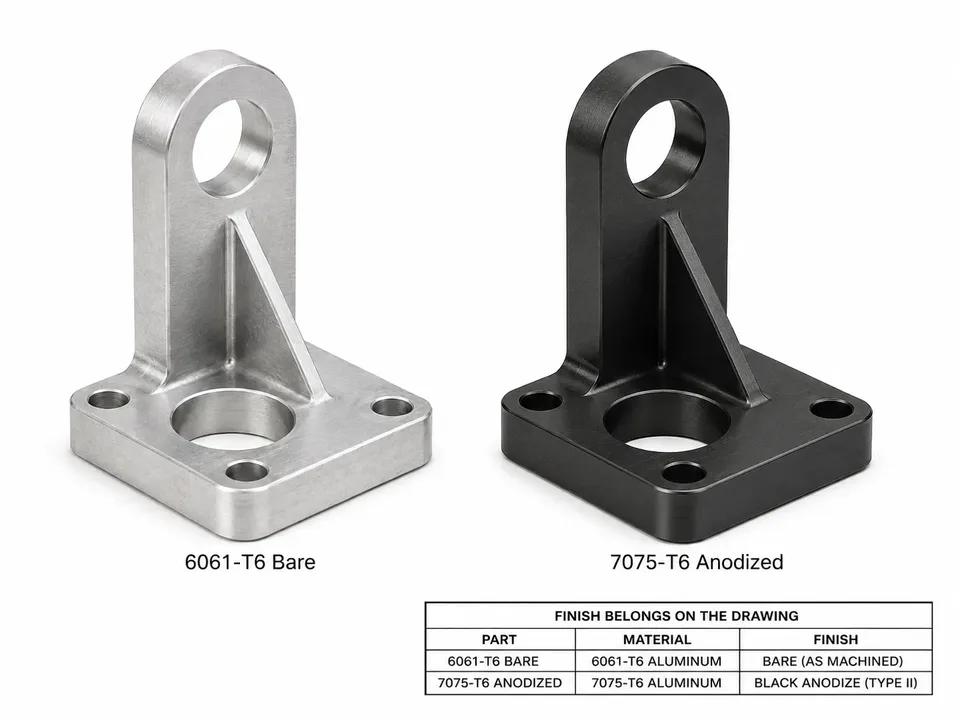

Both alloys anodize well structurally; the divergence is cosmetic. 6061 anodizes to a clear, uniform, easily colored film, which is why it owns the market for appearance-critical enclosures. 7075's copper and alloy chemistry produce a greyer, less uniform finish under the same anodizing line settings — acceptable for functional surfaces, but a risk for parts where the finish is the brand. For either alloy, hard anodizing builds measurable thickness that must be accounted for on mating dimensions, a detail worth confirming with the surface finishing process before tolerances are finalized.

When anodizing is not the right finish — because of conductivity requirements, cost targets, or a paint base — chemical conversion coatings are the common alternative for both alloys. They add negligible thickness, preserve electrical conductivity far better than an anodic film, and improve adhesion for subsequent paint. As with anodizing, 6061 responds more uniformly to conversion coating, while 7075's result depends more strongly on its copper content and the specific bath chemistry, so cosmetic requirements should be validated on a sample before a production run commits to either alloy.

05 Welding and Joining

This is the least negotiable difference on the list. 6061 welds readily with the common arc processes, which is why it anchors welded frames, brackets, and pressure-tight assemblies. The honest caveat is heat: welding locally overages the T6 structure, so the joint region carries lower strength than the parent material unless the assembly is re-heat-treated and re-aged. Designs that need full strength across a welded joint account for this rather than assuming the base-metal numbers travel through the weld.

7075 is a different case. Its zinc and copper chemistry makes it prone to hot cracking and fusion-zone problems, so it is generally not welded in structural practice. The accepted alternatives are mechanical fasteners, adhesive bonding, or the route many designs ultimately take — machining the assembly as one piece from 7075 billet and eliminating the joint entirely. That last option pairs naturally with CNC machining and is often the cleanest engineering answer when a welded 6061 structure is being upgraded for strength.

The selection logic writes itself from here. If the design needs a welded frame, chassis, or tank, 6061 is effectively the decision already made. If the design is machined complete and strength-driven, 7075's weldability becomes irrelevant and its strengths are free to justify themselves.

06 Cost and Availability

Both alloys are commodity items with deep global supply — plate, sheet, rod, and bar in a wide size range, from many mills, with short lead times. Neither is exotic, and neither requires special sourcing channels.

The price gap is real but moderate: 7075 stock typically carries a premium over 6061 per kilogram, with the exact spread moving with the market. Machining cost differences are subtler — 7075's higher cutting forces and faster tool wear raise tooling and cycle cost somewhat on longer runs, while both alloys machine quickly enough that machine-hour differences remain modest. A useful mental model: for most quoted parts, geometry, tolerances, and finishing drive more of the price than the aluminum grade does.

Where 7075 earns its premium is section size. Because the material is stronger, a competent designer can sometimes carry the same load through a smaller cross-section, buying back weight and material volume that partially offsets the higher per-kilogram price. That arithmetic works best on truly strength-driven parts; on parts sized by stiffness, space, or casting-like features, upgrading the alloy changes little and the cheaper grade wins by default.

07 Choosing by Application

The honest summary is that neither alloy is "better" — they are optimized for different failure modes and different manufacturing routes. The table below compresses the comparison into the decisions that recur in practice.

A short selection flow keeps the decision honest. First, check whether the applied stresses genuinely exceed what 6061-T6 carries with margin; if not, the other questions are mostly moot. Second, ask whether the environment is corrosive enough to worry 7075-T6, in which case either protect the part or step down a grade in strength. Third, confirm the joining route — a welded design has effectively already selected 6061. Fourth, decide how much the cosmetic finish matters, since anodized appearance favors 6061. Only after those steps is the material premium question worth answering, and by then it usually answers itself.

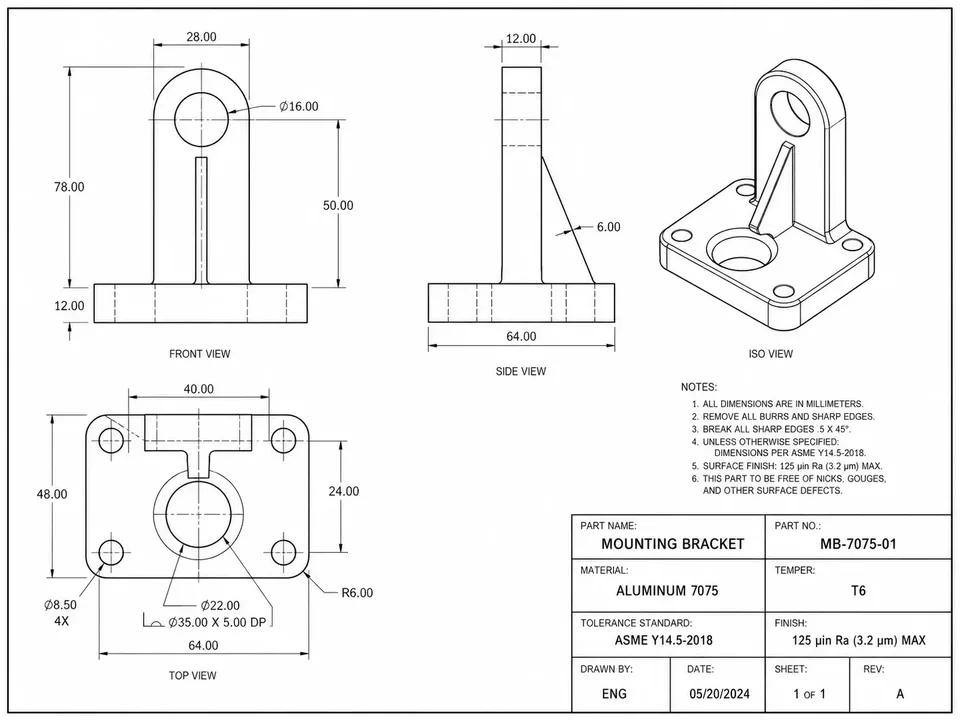

When the part is ready to quote, four items make the RFQ unambiguous: alloy and temper on the drawing, the applicable general-tolerance reference, the finishing specification, and the quantity breakdown. Parts that arrive with all four are quoted faster and with fewer assumptions — and if the strength question is still open, a drawing review with an engineering-focused CNC machining partner resolves it before the first chip is cut.
