When a machined part runs late, the cause is usually visible in the drawing months earlier. Cycle time catches the blame, but cycle time is a consequence. The decisions that actually stretch delivery — tolerances applied without function, pockets that tools cannot reach, walls too thin to hold, features that leave the milling department, materials picked after the design froze — are all made at the design stage, and all of them are cheap to fix before quoting and expensive to fix after.
This guide walks through the five decisions that most reliably delay production, each following the same chain: what the drawing asks for, what it demands from the shop, what it does to schedule and cost, and what to change instead. None of the fixes sacrifice function — that constraint is respected throughout, because the goal of design-for-manufacturing review is parts that work and ship on time.
01 Where Lead Time Actually Goes

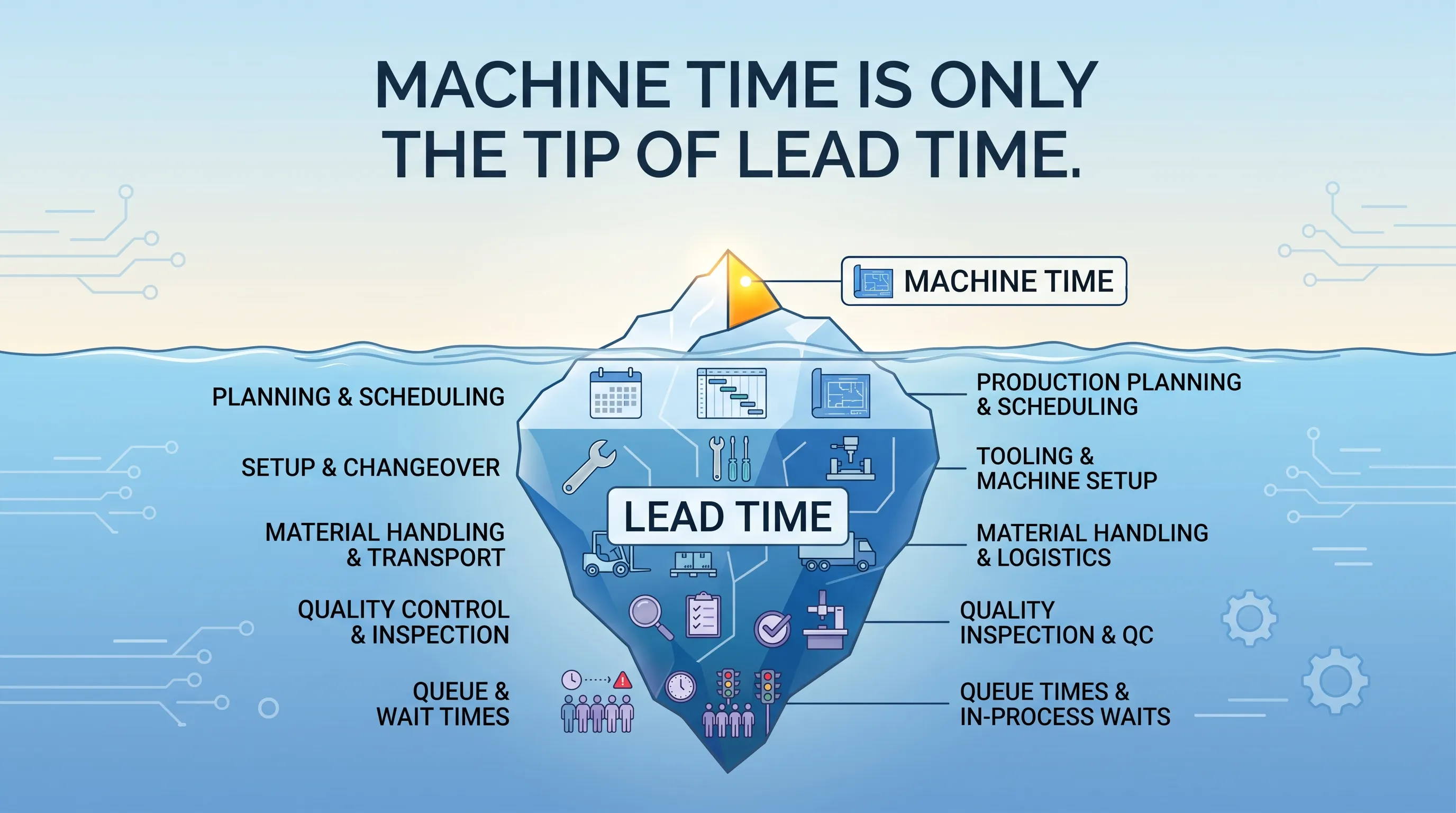

A part's calendar time is a stack, and machining is only one layer of it. Before the spindle turns, the job waits in queue, gets fixtured, and proves out its first article. After it, the part may travel to secondary processes, finishing, and inspection. Each layer is a scheduling handoff — and a place where a drawing decision quietly adds days.
| Lead-time layer | What the drawing controls | Delay it can add |
|---|---|---|
| Queue and scheduling | Machine class the part requires; complexity of the routing | Days waiting for the right machine or process |
| Setup and fixturing | Number of orientations, clamp surfaces, datum logic | Hours per setup; risk across repeated lots |
| Machining | Reachable geometry, radii, wall stiffness, stock condition | Reduced feeds, extra passes, re-machining |
| Secondary processes | Internal corners, deep small holes, special finishes | Transfers between departments or suppliers |
| Inspection | Tolerance count, GD&T scheme, measurement methods | Long programs; parts held pending results |
Reference Table The five decisions in this guide map directly onto these layers — usually onto two or three of them at once.
Quantity changes how the stack behaves, and the same drawing can be sound at one volume and expensive at another. At one or ten pieces, setup and first-article inspection dominate, so a design that machines in a single setup quotes dramatically faster than one needing re-fixturing — the per-part savings barely matter yet. At hundreds or thousands, per-part machining and inspection time takes over, and the tolerance scheme and reachability decisions set the price curve. A drawing reviewed for DFM at both ends of its expected volume catches the cases where a prototype-friendly design quietly becomes a production bottleneck.
02 Decision 1: Blanket Tight Tolerances
The pattern is familiar: a model carries default tolerances everywhere, and the drawing inherits them. Now every dimension in the band demands the same attention as the two that actually matter — and the shop must treat the whole part as precision work. Machining slows to protect features that never needed it, inspection measures dozens of dimensions that have no functional story, and any rejection risks the schedule for reasons nobody can defend on an engineering basis.
The mechanism is real, not bureaucratic. A tighter band narrows the process window: lighter cuts, more passes, more frequent tool checks, and measurement on equipment suited to the callout. Multiply that across a drawing where precision is undifferentiated, and the part pays precision prices everywhere while functioning nowhere better. The fix costs nothing but intent: walk the drawing, keep tight limits on the features whose failure ends the product — fits, sealing faces, bearing bores — and let the remainder live at the general tolerance.

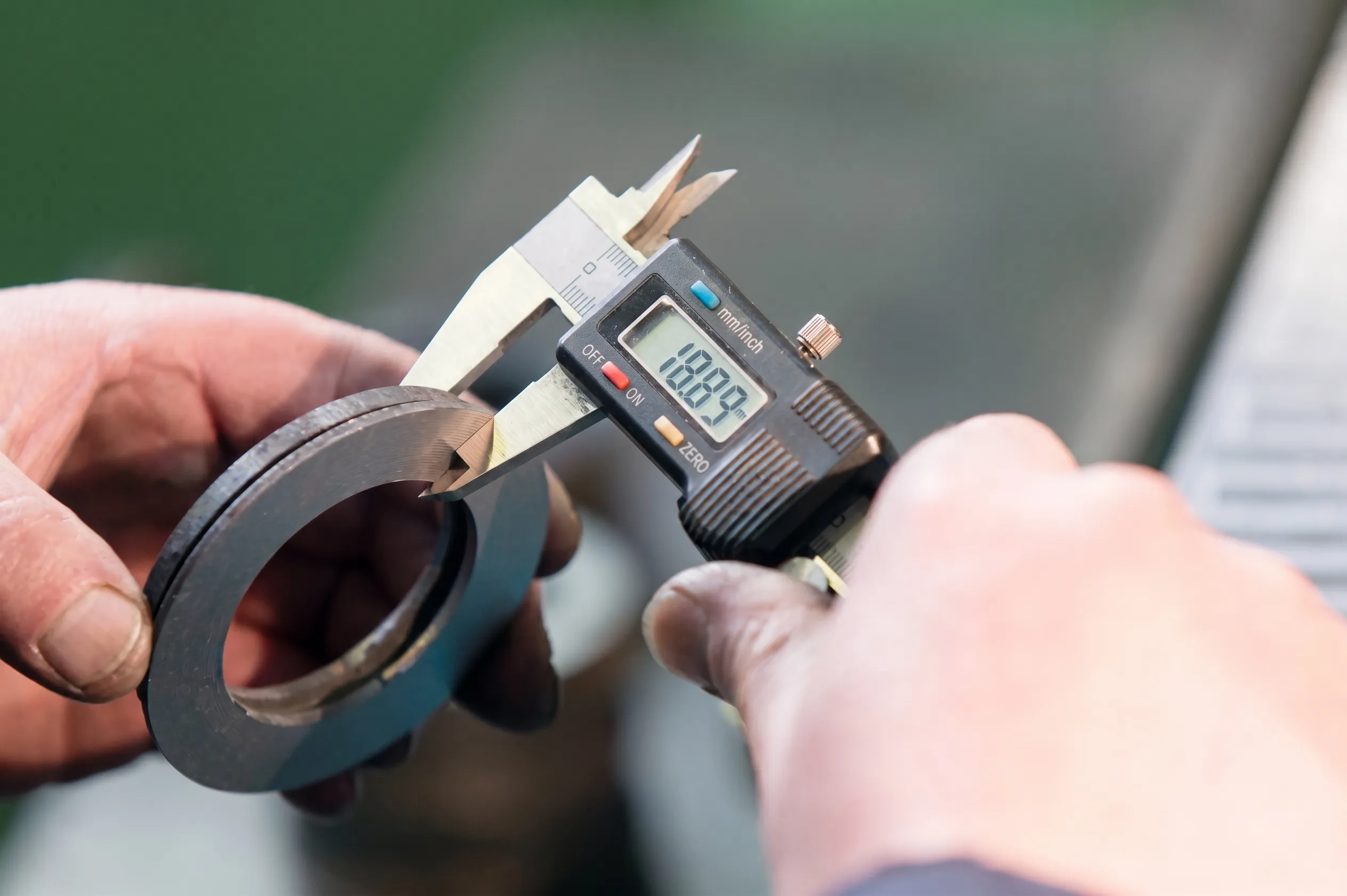

A worked example shows the size of the effect. Take a machined bracket with a bearing bore, two mounting holes, and a dozen reference dimensions for the pocket and outer profile. Left undifferentiated, every dimension in a tight band means a dozen measured features, a cautious machining plan, and any single out-of-tolerance reference dimension scrapping an otherwise functional part. Concentrating the tight limit on the bore alone — with the rest at the drawing's general class — cuts the inspection list to the features with a functional story, widens the process window for everything else, and often removes the special handling the blanket version implied. Same part, same function, materially different schedule.
03 Decision 2: Deep Pockets with Small Internal Radii
A pocket is milled by a tool that must be narrower than its smallest internal corner — and a long, slender tool is a spring. Push it hard and it deflects; chatter marks the floor, walls taper, and corners stay undersized. The shop's countermeasures are all slow: reduced axial engagement, trochoidal clearing passes, multiple spring cuts, more in-process checks. What began as a geometry preference has become a cycle-time problem and a surface-quality risk in the same feature.
Internal corner radii are the lever with the highest leverage. Increasing a corner radius lets the shop use a stiffer, larger-diameter tool that reaches deeper at full speed; specifying radii as design intent rather than as whatever the CAD fillet defaulted to is one of the cheapest schedule decisions available. Depth compounds everything: a pocket deeper than roughly three to four times the corner radius enters territory where tool reach, not material removal, sets the pace. Where mass genuinely must come out, multi-axis access can reorient the feature instead of extending the tool — worth a conversation during DFM review rather than after the quote lands.
The revision pattern that works: open the radii you can, flatten the depths you can, and move the deep-and-narrow features to designs that tolerate them — or to processes built for them. What you keep, keep deliberately.
There is also an honest boundary to recognize: some geometries fight every milling strategy, and the right answer is a different process, not a braver one. Parts dominated by large thin pockets, extensive sheet-like walls, or high-volume repetition of simple forms often quote better as sheet metal fabrication than as billet machining; parts with internal complexity that no cutter can reach belong to additive or EDM routes from the start. Asking "should this be machined at all?" early is not conceding — it is the DFM review doing its job at the level where the biggest schedule wins live.
04 Decision 3: Thin Walls and Unsupported Geometry
Thin walls fail twice — during cutting and after it. During cutting, a wall too thin relative to its height and material stiffness springs away from the tool: dimensions drift, surfaces wobble, and the shop slows everything down to baby the feature, often machining walls in alternating passes with the part resting between cycles. After cutting, residual stresses rebalance across the newly thinned section and the part moves on the bench — sometimes days later, sometimes at the customer. Both failure modes turn one feature into an ongoing schedule conversation.
Fixturing is the quiet half of this decision. A part clamped on surfaces that deform, or located on features that shift after roughing, invites re-work regardless of how conservative the cutting parameters are. Generous clamping tabs, symmetric stock removal, and datums that survive the machining sequence are design moves that cost nothing on screen and save setups in the shop. Where a thin section is genuinely functional — an optical shelf, a flexure, a thermal break — say so on the drawing. A flagged intentional feature gets process planning; an accidental one gets discovered.
Material choice multiplies the effect: the same wall geometry behaves differently across alloys, a difference quantified in the 6061-versus-7075 comparison. Stiffer, higher-strength stock carries thinner sections — and stress-relieved plate keeps them from moving after the chip clears.
05 Decision 4: Features That Force Secondary Processes

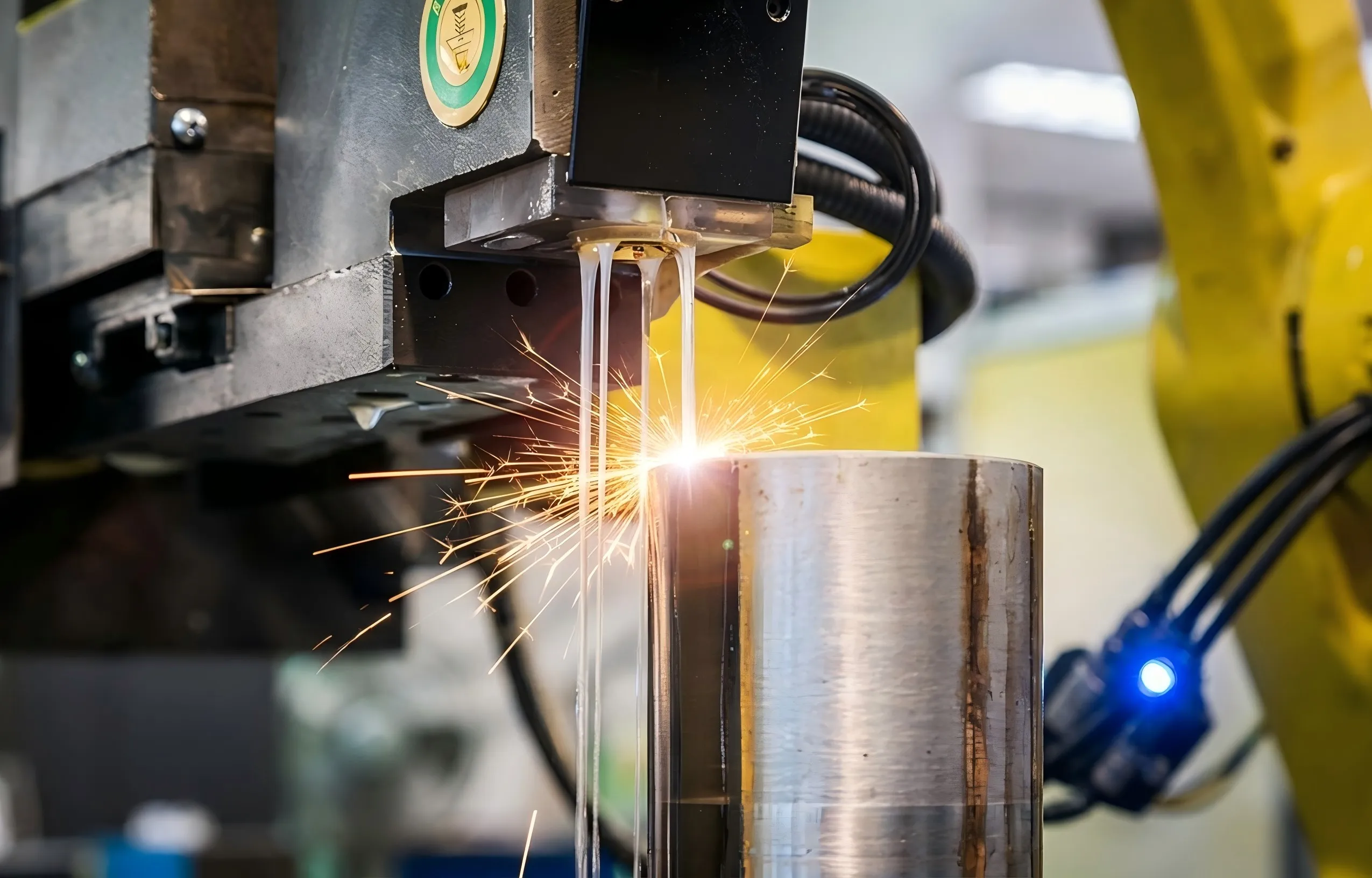

Some geometries cannot leave the machining center as finished parts, and each departure adds a transfer, a queue, and a tolerance stack. Sharp internal corners in hardened or difficult material route to wire EDM. Deep, small-diameter holes with tight straightness route to gun drilling or EDM. Mirror surfaces route to grinding and polishing. None of these processes is a problem; the problem is discovering them at quoting time instead of design time, when the routing could still be discussed, or the feature rethought.
The classic trigger is the square internal corner — geometrically natural in CAD, geometrically impossible for a round milling tool in one pass. Options exist at every level: accept a radius and let the pocket mill conventionally; redesign as two milled halves joined around the square cavity; or route to EDM knowingly, with the schedule and cost consequences priced in. The same logic covers threaded features in awkward places, gallery holes, and surface-finish callouts that only polishing can meet. The pattern to avoid is not using secondary processes — it is using them by accident.
06 Decision 5: Material and Stock Decided Late
The last decision that delays production is postponing the first one. Alloy, temper, stock form, and stock size touch everything upstream: which machine runs the part, which tools cut it, how it fixtures, how it distorts, and — before any of that — whether the metal exists in the supply chain this month. Exotic selections with single-mill availability turn procurement into the critical path; oversized plate sawn from scarce sizes adds roughing time nobody planned for; and unverified availability turns a quoted lead time into an estimate.
Stock condition is the subtler trap. Standard quenched plate carries residual stress that redistributes as the part is machined — thin, precise parts bend, and the shop discovers it on final inspection. Stress-relieved plate costs more per kilogram and saves the re-work cycle; for tight-tolerance work it is usually the economical choice, not the premium one. The same review covers temper and finishing compatibility, since the finishing route constrains material choices more than most schedules assume.
The workable habit is small: settle alloy, temper, stock form, and availability before the drawing releases, and treat any change afterward as the engineering event it is — with re-quote, re-plan, and re-verify on the critical path where they belong.
07 The Drawing That Quotes Fast
The five decisions reduce to one discipline: precision where function demands it, reachability wherever metal must come out, stability through cutting and after it, secondary processes chosen rather than inherited, and material settled early. A drawing that observes all five quotes faster, machines faster, and inspects faster — not because the shop works harder, but because nothing in the routing needs to defend itself.
Pre-RFQ DFM Checklist
- ✓Tolerances reviewed feature-by-feature; general class carries the rest
- ✓Internal corner radii specified as design intent, not CAD defaults
- ✓Wall thickness-to-height checked against material stiffness
- ✓Clamping surfaces and datums survive the machining sequence
- ✓Secondary-process features identified and accepted deliberately
- ✓Alloy, temper, stock form, and availability confirmed before release
The review itself is usually quicker than teams expect. A functional model and drawing, a short note on what the part does, and the quantity range let an applications engineer return specific questions and suggestions — radius and depth revisions, datum relocations, tolerance redistribution, stock or finish alternatives — in a single exchange. Each accepted change is one fewer surprise during production, and the drawing that enters quoting after that exchange tends to come back priced and scheduled without qualifications.
DFM review is cheapest as a conversation. Send the model and drawing with the functional story attached — what the part does, which features matter, where the tolerance budget belongs — and an engineering-focused shop can often suggest revisions that save setups or processes without touching performance. That exchange costs one email thread; skipping it is what the five decisions above all have in common. If a design is ready for that conversation, start with a machining review before it starts with a quote.
