Anodizing vs. Powder Coating
for Aluminum Parts

Anodizing converts the aluminum surface into a hard ceramic oxide; powder coating bonds a polymer film on top of it. That single structural difference explains almost everything downstream. An anodic layer cannot peel because there is no discrete coating layer to detach — it is the metal's own surface, transformed. A powder film, by contrast, is a genuine layer with genuine thickness, which buys impact protection and unlimited color but introduces the possibility of chipping and adds substantially more dimension to every coated face.

For engineers and buyers finishing machined aluminum parts, the practical questions are consistent: how thick is the film and what does it do to tolerances, how does it age under abrasion and weather, what will it look like, does it need masking for conductivity, and what does each option cost at the production quantity. This guide works through each question in turn, then closes with a selection table and a drawing checklist that makes either specification unambiguous.

01 What Each Process Actually Does

Anodizing is an electrochemical conversion process. The part is immersed in an acid electrolyte — sulfuric acid for the common Type II and Type III processes — and current is passed so that the aluminum surface grows a controlled aluminum-oxide film. That film is integral to the substrate: roughly half of it grows outward and half grows inward, converting existing metal as it builds. Nothing is deposited in the conventional sense, which is why an anodized surface feels like metal and shows the machining texture underneath.

Powder coating is a physical application process. Charged polymer powder is sprayed onto the grounded part electrostatically, clinging in a uniform cloud, and the part then enters an oven where the powder melts, flows, and cures into a continuous film — typically in the 180–200 °C range for common polyester and epoxy chemistries. The result is a paint-like layer: consistent, opaque, and available in an enormous catalog of colors and textures.

The two families also scale differently across materials. Anodizing applies to aluminum (and a short list of other metals such as titanium and magnesium in specialized shops), while powder coating works on essentially any conductive metal — which matters when one supplier finishes a mixed assembly of aluminum brackets and steel frames.

Quick Reference Thickness ranges are typical process windows from finishing-industry practice; a production specification should state the target thickness and where it applies.

02 Film Thickness and Dimensional Effects

Every finish moves dimensions, and pretending otherwise is how assemblies stop fitting. Anodizing grows the part outward by roughly half the total film thickness per surface — a 20 µm Type II coating adds about 10 µm per face, usually negligible on structural dimensions but meaningful on slip fits, threads, and bores. Hard anodizing at 50 µm and above changes dimensions enough that experienced designers either pre-machine allowances or specify the coating on non-critical faces only.

Powder coating is the bigger dimensional actor. A 60–80 µm film adds that full thickness to every coated surface, threads and tapped holes fill quickly, and bores tighten. Standard practice masks threaded holes and critical datums before powder, and any drawing heading to surface finishing should identify those areas explicitly rather than leaving the finisher to guess.

Verification belongs in the conversation too. Powder thickness on aluminum reads quickly with a handheld eddy-current gauge, which is why incoming inspection usually spot-checks several faces per lot; thin anodic films are harder to measure non-destructively, and quality-critical parts are typically controlled through process parameters, coupons run alongside the batch, or destructive cross-sections on first articles. Knowing which method will police the specification — before the parts ship — keeps the thickness callout enforceable rather than aspirational.

The cleanest way to control all of this is on the drawing itself: call out the finish by type, the target thickness, and the surfaces to mask, then let the tolerance stack include the film. Parts whose critical dimensions already carry tight limits — for example, parts inspected against ISO 2768 general tolerance classes — need the coating allowance inside that stack, not bolted on afterward.

03 Durability: Abrasion, Corrosion, and Impact

The durability ranking flips depending on which failure mode is in play. Against abrasion, hard anodizing (Type III) is the stronger choice — its ceramic oxide is genuinely hard, which is why it serves on sliding surfaces, wear plates, and sealing faces. Against impact, powder coating wins: a polymer film absorbs knocks that would crack or spall a brittle anodic layer, which is why it dominates on enclosures, frames, and brackets that live a rough life.

Against corrosion, both finishes perform well when applied correctly, but they age differently. Anodizing shields the underlying aluminum with a chemically bonded oxide and cannot blister or peel; its weakness is porosity in the film, which is why anodic coatings are often sealed in hot water or steam as the final step. Powder films barrier-protect the whole part and handle weather and UV exposure well in polyester formulations — the standard choice for outdoor service — but a chip through the film exposes bare metal at the edges of the damage, and galvanic effects can creep underneath a damaged film over time.

Longevity under sunlight also separates them in one specific way: anodized colors are dye-based and can shift or fade in prolonged UV exposure depending on the dye system, while quality exterior-grade powders are formulated for years of direct weathering. Indoor electronics and industrial hardware rarely notice the difference; architectural and outdoor products plan around it.

04 Appearance and Color

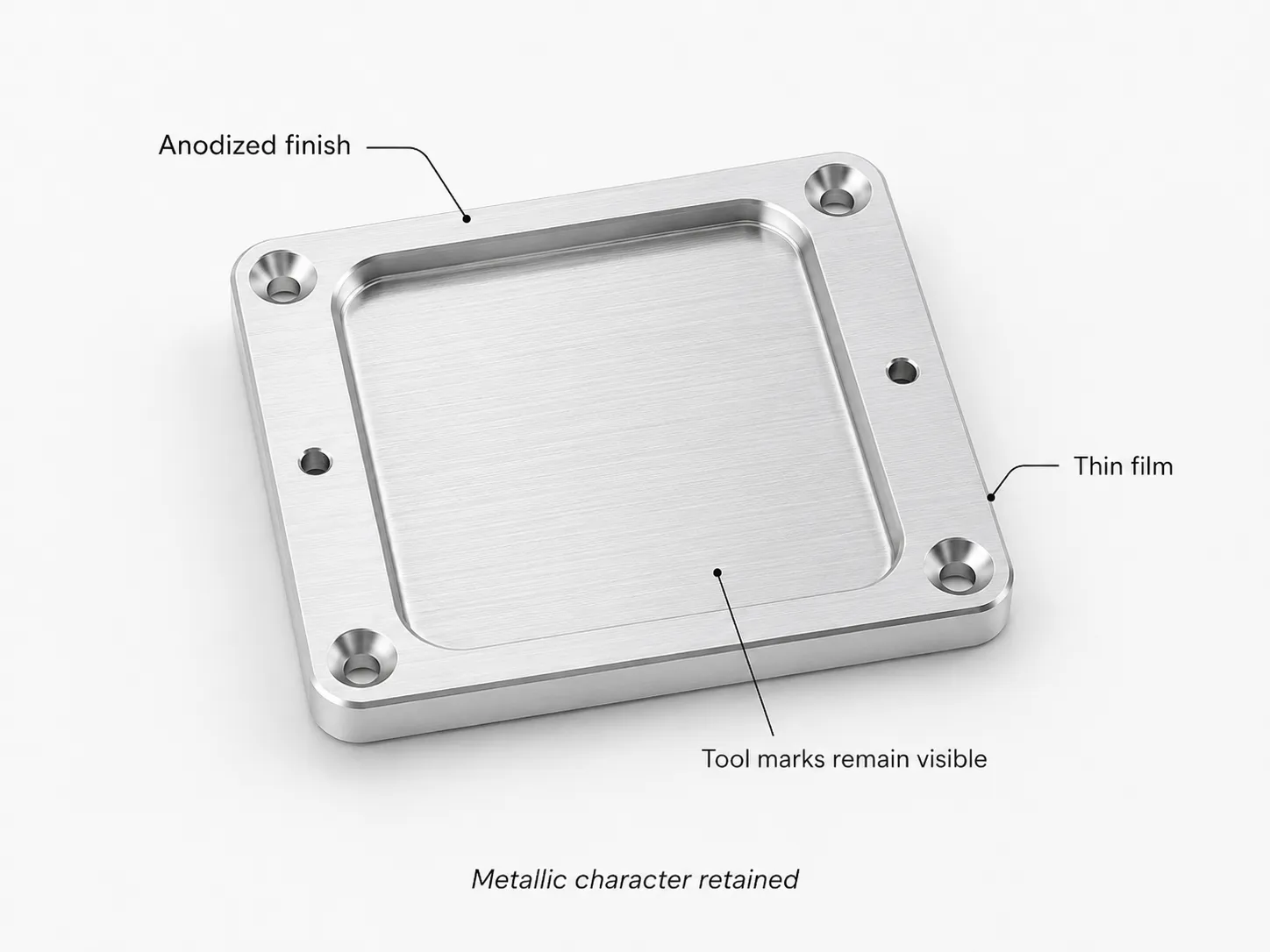

The two finishes occupy different aesthetic territories. Anodizing preserves the metal: light interacts with the surface as metal, so the finish reads as brushed, matte, or satin aluminum with a translucent tint over it. The color catalog is narrower — clear, black, grays, blues, golds, and champagne tones dominate — and exact color matching between anodizing batches is famously imprecise. What anodizing offers in exchange is the look machined products are known for: crisp edges, visible surface texture, no film edge to catch light.

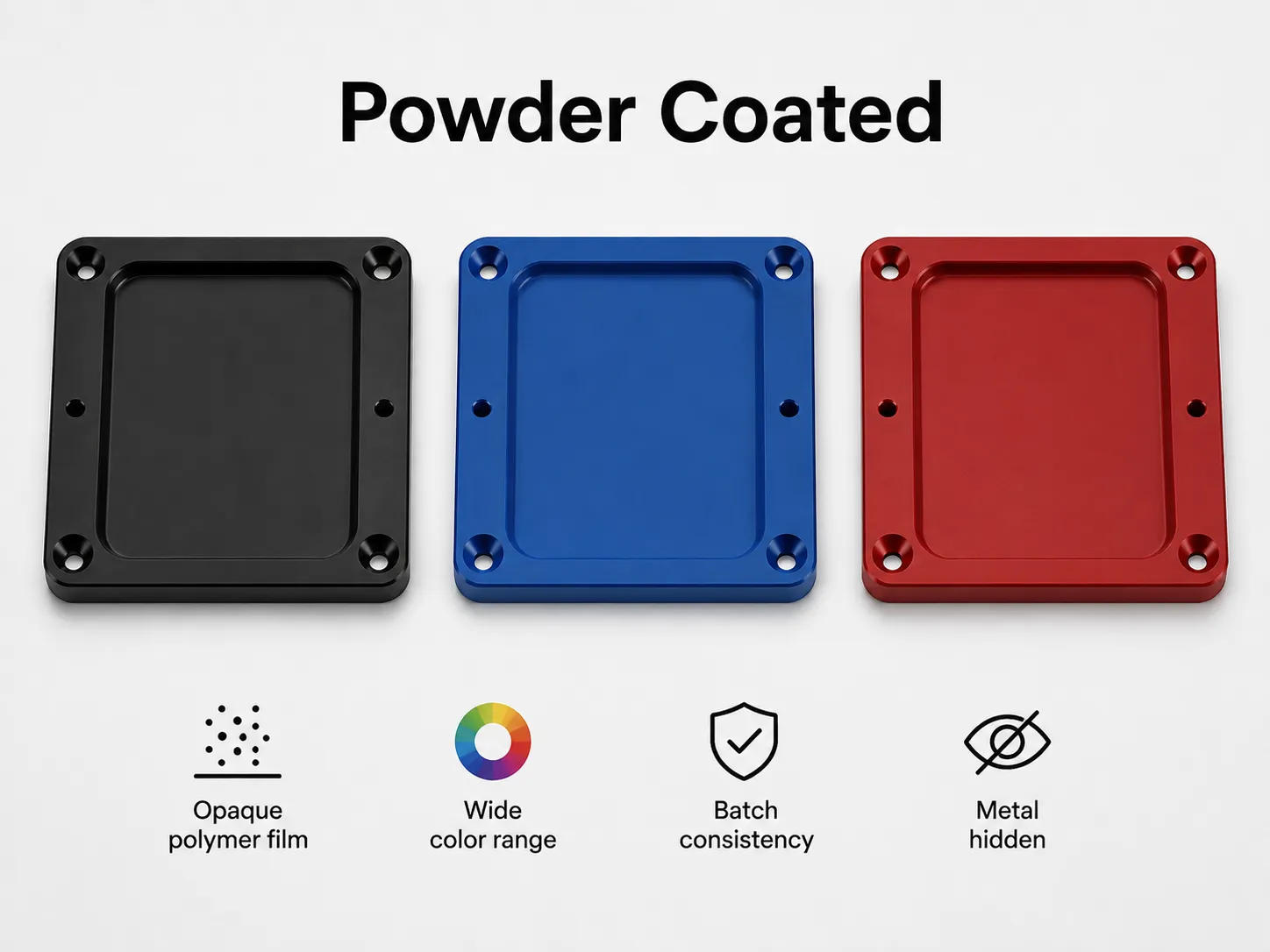

Powder coating covers the metal with an opaque polymer available in thousands of solid colors, metallics, textures, and effects, with far tighter batch-to-batch color consistency. It also hides minor machining marks and small surface imperfections — valuable on cosmetic enclosures, less so when the design intentionally shows off fine machining. Edges and faraday-corner coverage need process attention, and sharp internal corners can film thinly, but for brand-color products powder is the practical default.

Alloy choice quietly constrains anodizing appearance, a topic covered in depth in the 6061-versus-7075 comparison: 6061 anodizes to a clear, uniform film while 7075's copper content renders a darker, greyer tone under the same bath conditions. Parts that must match visually across alloys — or that pair machined billet sections with extruded stock — should be finish-validated on samples of the actual materials before production.

05 Conductivity, Masking, and Secondary Operations

Both finishes insulate. Aluminum oxide is an excellent electrical insulator, and a cured powder film is no better for grounding — so any part that requires electrical grounding, shielding contact, or a conductive path needs masked areas in either process. Masking for anodizing is done with plugs, tapes, and racks that also carry current; masking for powder is done with high-temperature tapes and plugs that survive the cure oven. Both add cost in direct proportion to how many masked features a drawing specifies.

Secondary operations follow the same logic. Anodized surfaces accept adhesive bonding and type printing well; powder-coated surfaces are painted polymer, so drilling or tapping after coating exposes bare aluminum and defeats the corrosion barrier, while re-coating a touched area in the field is difficult and usually cosmetic. The design that ages best is the one that finishes last: complete all machining, then finish, then assemble.

Thermal history deserves a note of its own. Powder curing holds parts at roughly 180–200 °C, which is within the range where precipitation-hardened aluminum tempers can shift slightly — the effect is usually small for 6061-class parts but grows more relevant for 7075 and other alloys aged at lower temperatures. Where a part carries a strength-critical temper, confirm the cure schedule with the finisher and, if necessary, specify a lower-cure powder chemistry or re-aging after coating.

06 Cost and Batching

Both processes price on labor more than on material. Parts must be racked or hung individually, cleaned thoroughly, and processed in batches — so part size, feature count, and masking drive cost harder than surface area alone. Across the industry, powder coating is generally the more economical finish per part at volume, particularly for parts with simple masking, because spray-and-cure lines run quickly and the powder itself is a commodity. Anodizing costs concentrate in tank time, racking contact, and the handling that sealing and dyeing add.

Batch structure matters as much as process choice. A powder line wants many parts in the same color; mixing three brand colors across twenty parts multiplies changeovers. An anodizing line wants parts of similar alloys and target thicknesses together, since each bath parameter set is a separate run. Consolidating finish requirements within a product family — one color, one coating spec, one alloy — is one of the few cost levers that costs nothing to pull.

Quantity shifts the comparison over a product's life. Prototypes and small lots often see anodizing quoted more favorably because small tanks run cheaply and no color-matching inventory is needed; at production volumes the powder line's speed usually takes over. Neither trend is absolute — geometry and masking dominate both quotes — which is why finish decisions for machined aluminum components are worth revisiting when volumes change.

Hybrid finishes are also more common than spec sheets suggest. A frequent pattern masks a wear bore or thread and carries it in hard anodize while the visible exterior takes brand-color powder — one part, two finishes, each doing the job it is best at. The combination multiplies masking and handling cost, so it earns its place on drawings only where the requirements genuinely conflict. When a design points that way, run the masking map past the finisher early: what is trivial to protect in an anodizing tank and what survives a cure oven are two different lists.

07 Choosing by Requirement

The decision compresses into the requirements the part actually carries. No finish wins overall — each wins against a specific failure mode.

A short selection flow keeps the decision fast. Establish the failure mode first — wear, impact, weather, or purely cosmetic — because that single answer eliminates one option in most cases. Then confirm the dimensional budget: if the design cannot spare 60 µm per face, powder is out regardless of its color advantages. Next settle appearance honestly, including whether visible metal is part of the product's identity. Finally, check conductivity and batch structure, both of which are cheap to resolve on the drawing and expensive to resolve after parts arrive coated.

Whichever finish survives that filter, four drawing callouts make it manufacturable: finish type and class, target thickness, masked features, and color reference where applicable. Send those together with alloy, temper, and quantity, and a finish review can happen in one pass — the fastest way to move from a specified part to a finished one.
